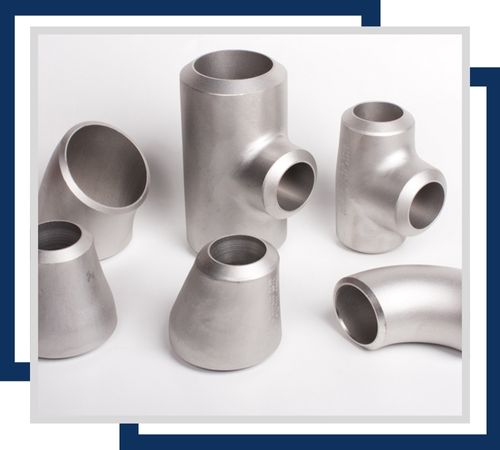

Harshita Stainless is a trusted producer and supplier of Stainless Steel Tees in Delhi, India, providing premium pipe fittings that provide hassle-free redirection or division of flow within pipeline systems. Our stainless steel tees are produced with high dimensional precision and corrosion resistance, adhering to the highest industrial standards. Provided in equal and reducing configurations, these tees are manufactured in several grades and sizes for process industries, chemical, and pharmaceutical industries. Harshita Stainless ensures durability, performance, and effortless installation with every fitting, assisting customers in India with reliable stainless steel flow solutions.
Our stainless steel tees are made from grades such as 304, 304L, 316, and 316L, with outstanding resistance to corrosion, oxidation, and chemicals. The tees have tensile strength of 500–750 MPa, yield strength of 200–300 MPa, and 40% elongation. Their nickel and chromium content guarantees long service life under high-pressure or aggressive media conditions. The tees are weldable, machineable, and have good mechanical stability in differing temperature conditions, so they are appropriate for different operating needs.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| SS | 304 | 304N | 304LN |
|---|---|---|---|
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Yes, stainless steel tees are fully recyclable. They can be melted down and reused without losing their properties, making them an environmentally friendly and sustainable material choice.
Common grades of stainless steel used in tee fittings manufacturing include 304, 304L, 316, 316L, and 321. These grades offer excellent corrosion resistance, durability, and suitability for various applications.
Yes, stainless steel tee fittings are ideal for hygienic and sanitary applications due to their corrosion resistance, smooth surfaces, and ease of cleaning, meeting strict industry standards.
Key considerations for selecting stainless steel tee fittings include material grade, corrosion resistance, pressure and temperature requirements, compatibility with media, application standards, and cost-effectiveness for long-term use.
Stainless steel tees are employed to join or divide the fluid flow in pipe systems. Typical uses are chemical facilities, refineries, pharmaceutical plants, and food processing pipes. They play a vital role in water supply systems, fire protection systems, and distribution of compressed gas. In equal as well as reducing configurations, they provide smooth incorporation into intricate pipe arrangements. Harshita Stainless offers customers across Delhi and India with tees that promote leak-free performance, pressure tolerance, and compatibility with installed systems in industrial, municipal, and commercial applications.
