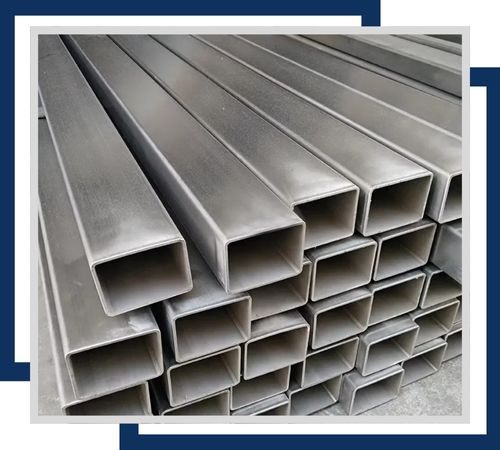

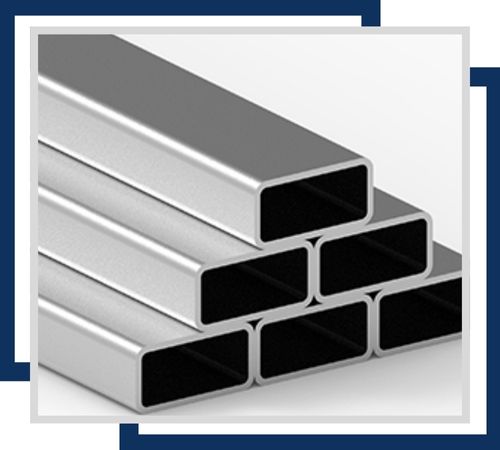

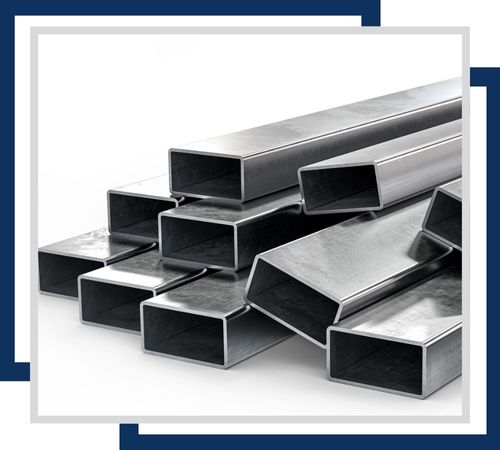

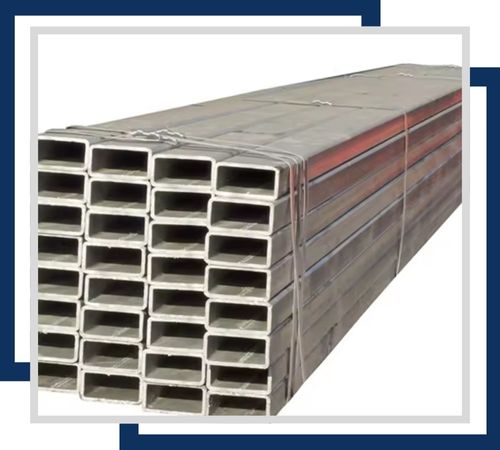

Harshita Stainless is one of the top manufacturers and suppliers of premium Stainless Steel Rectangle Pipes in Delhi, India. Manufactured from superior grades of stainless steel like SS 304 and 316, these pipes provide outstanding corrosion resistance, structural strength, and durability. With neat designs and uniform sizes, they are ideal for architectural, industrial, and structure purposes. Our rectangle pipes are engineered to precision and rigorously inspected to satisfy international standards. Harshita Stainless provides these pipes all over India, catering to the demands of urban development, industrial fabrication, and infrastructure applications with assured performance and delivery on time.
Our rectangle pipes are made in grades SS 304 and 316, which contain 18–20% chromium, 8–12% nickel, and molybdenum in grade 316 for superior corrosion resistance. They provide tensile strength of 520–750 MPa and yield strength of 200–350 MPa, and elongation to 40%. Their cold-rolled construction provides dimensional stability and a smooth surface. They are mechanically stable and weldable and also resist pitting and structural stress. The rectangular section provides high load-carrying capacity and stiffness compared to round tubes of equal weight.
| Size | 10 X 20, 12.75 X 25.4, 10 X 30, 15 X 30, 20 X 40, 20 x 50, 25 X 50, 20 x 60, 40 X 60, 40 X 80, 45 X 75, 50 X 100 |
|---|---|
| Grades | TP – 304, 304L, 316, 316L, 201 |
| Standards | A312 – A358 – A409 – A554 – A778 – A789 – A790 |
| Tolerance on Length | Commercial Length: 6000 milimeter +/- 30 milimeter Fix Length: from 1200 milimeter up to 12000 milimeter with a tolerance up to -0/+ 5mm |
| Finish | Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1 milimeter,Mirror Polished |
| PIPE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
|---|---|---|---|---|---|
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
Contact us to get a quick quote for your requirement.
Yes, stainless steel rectangle pipes can be welded using appropriate welding techniques such as TIG or MIG welding. Proper preparation and filler material are essential for strong, durable welds.
Stainless steel rectangle pipes are highly resistant to corrosion due to their chromium content. However, they may corrode in harsh environments with high chloride exposure or inadequate maintenance.
Yes, stainless steel rectangle pipes can be used for natural gas applications due to their strength, corrosion resistance, and ability to withstand high pressure, ensuring safe and durable performance.
Stainless steel rectangle pipes made from austenitic grades (like 304 and 316) are generally non-magnetic. However, some ferritic or martensitic grades may exhibit magnetic properties.
Stainless Steel Rectangle Pipes are used in building structures, railing systems, furniture, automobile chassis, and industrial constructions. Their rectangular sides are ideal for framing, skids, conveyor brackets, partitions, and architectural designs. They are also utilized in food and beverages, chemical plants, and shipbuilding where corrosion resistance is essential. Harshita Stainless provides custom-sized rectangle pipes throughout Delhi and India, addressing the needs of structural, aesthetic, and process projects demanding strength, accuracy, and a smooth finish.
