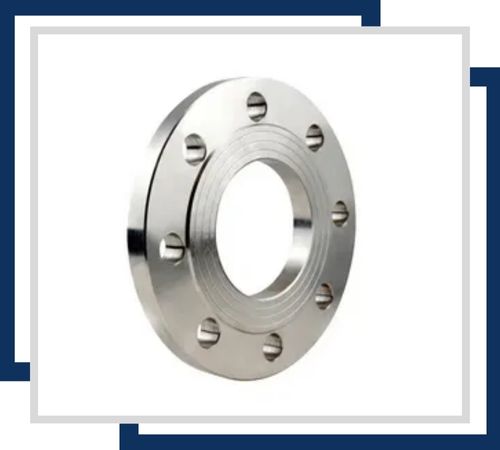

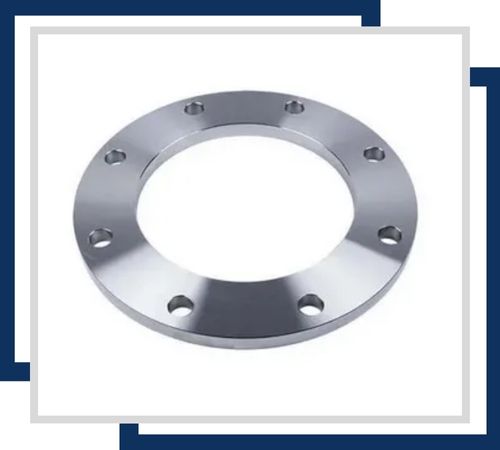

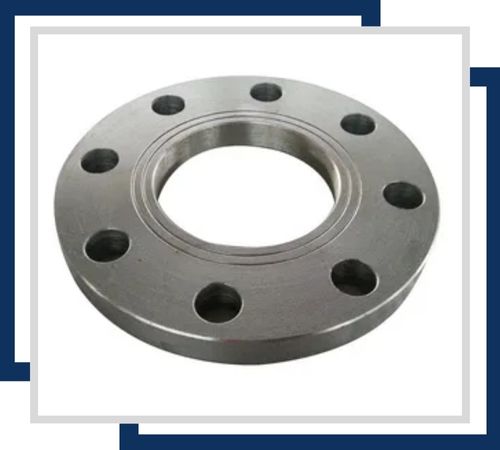

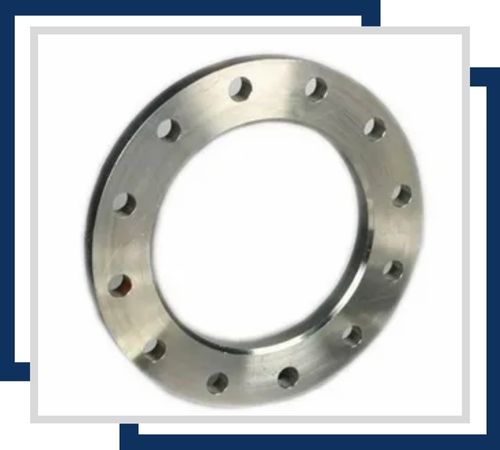

Stainless steel plate flanges are commonly manufactured from 304, 304L, 316, and 316L grades. The grades consist of 18–20% chromium and 8–12% nickel with 2–3% molybdenum in 316 grades for improved corrosion resistance. The flanges provide tensile strength of 500–750 MPa and yield strength of 200–300 MPa, with excellent elongation and weldability. The flanges have high resistance to oxidation, acids, and chlorides and hence find use in aggressive industrial conditions. Their flat face configuration is easy to weld and securely leak-free seal.
Stainless steel plate flanges offer excellent durability as well as resistance against corrosion. These are therefore good for aggressive environments. They could withstand high temperature and pressure but maintain their structure. Thus, they remain reliable over time. They also don’t stain and rust, and hence increase service life. Besides, the surface is smooth to provide a tight seal and easy installation. Stainless steel plate flanges have an attractive look and require very less maintenance; they are a widely preferred option in many industrial and construction industries.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Contact us to get a quick quote for your requirement.
The pressure rating of a stainless steel plate flange typically depends on its material grade, size, and the pressure-temperature rating of the system. For example, a 150 lb stainless steel flange generally has a pressure rating up to 285 psi at 100°F.
Yes, you can order Stainless Steel Plate Flanges in custom sizes and polishes. For more details, mail us at sales@harshitastainless.co.in
Yes, Stainless Steel Plate Flanges can be welded. They are designed for welding applications, providing a strong, leak-proof connection in various industries.
Choose a stainless steel plate flange based on the required pressure rating, corrosion resistance, and compatibility with the intended application environment. Ensure proper sizing, material grade, and welding requirements for optimal performance.
Stainless steel plate flanges find extensive application in oil and gas pipelines, chemical processing industry, refineries, power plants, and marine systems. They offer flat welded connections that ease easy assembly, inspection, and disassembly of piping systems. They find use in water supply, firefighting lines, and HVAC networks as well. Their chemical and rust-resistance qualities render them ideal for underground, outdoor, and harsh environment applications. Harshita Stainless provides high-performance, durable plate flanges throughout Delhi and India, relied upon by engineers and contractors for key piping infrastructure projects.
