Harshita Stainless provides high-quality Stainless Steel Mechanical Tubing from Delhi, India. Designed for mechanical and structural uses, our tubing provides accurate dimensions, uniform wall thickness, and fine surface finish. Available in various sizes, lengths, and grades to address engineering and fabrication needs, these tubes are produced using cold- or hot-finished processes, providing excellent strength and formability. Applied extensively as structural elements in industrial and architectural applications, Harshita Stainless mechanical tubing delivers dependable performance and structural stability to India‘s infrastructure and machinery markets.
Mechanical tubing grades are 304, 304L, 316, and 316L having chromium (18–20%) and nickel (8–12%). 316 grades contain molybdenum for better corrosion resistance. Tensile strength is usually 500–700 MPa, yield strength 200–300 MPa, and elongation 30–40%. Tubes are cold-finished for close tolerances and mirror finish. They have good resistance to mechanical stress, fatigue, and environmental corrosion and retain high strength-to-weight ratio, and hence they are suitable for load-bearing and dynamic structural uses.
|
Dimensions |
: |
ASTM, ASME and API |
|
Standard |
: |
ASTM / ASME SA213 |
|
Size |
: |
1/8″NB TO 30″NB IN |
|
Specialized in |
: |
Large Diameter Size |
|
Schedule |
: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Form |
: |
Round, Square, Rectangular, Hydraulic Etc |
|
Type |
: |
Seamless |
|
Length |
: |
Single Random, Double Random & Cut Length. |
|
End |
: |
Plain End, Beveled End, Threaded |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | 0.10 max |
SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 0.10 max |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | – |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

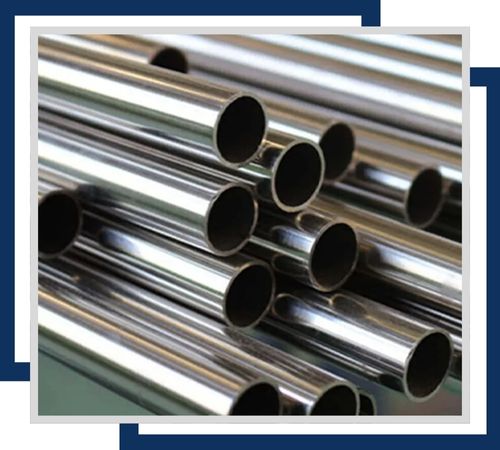

Stainless steel mechanical tubing is a high-strength, corrosion-resistant tube used in various industrial applications. It provides structural support, durability, and reliability in demanding environments, including aerospace, automotive, and chemical industries.

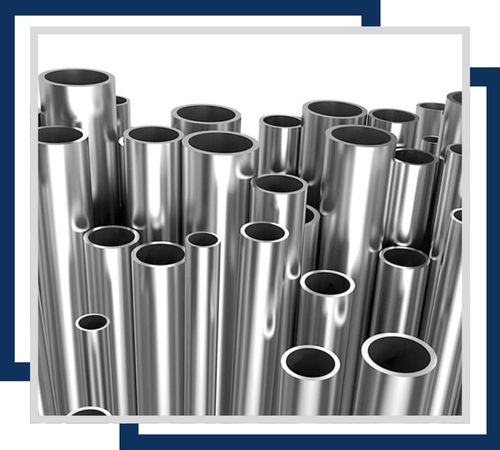

Alloy steel mechanical tubing is a high-strength, durable tube made from alloyed steel, designed for demanding applications. It offers enhanced properties like improved toughness and resistance to high temperatures and stress.

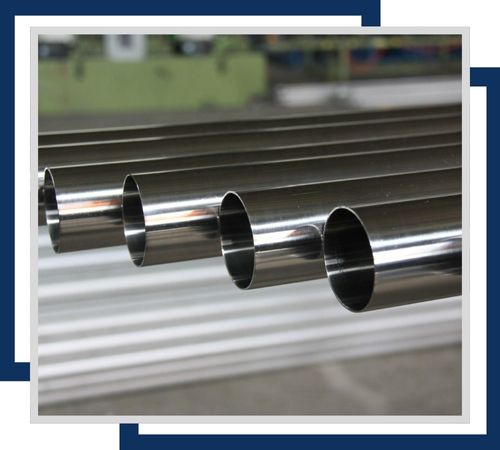

Aluminum mechanical tubing is a lightweight, corrosion-resistant tube used in various applications. It provides strength and durability while being easy to fabricate, making it ideal for aerospace, automotive, and structural uses.

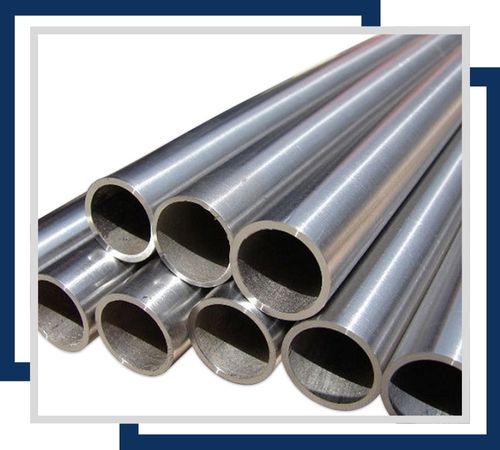

Cold drawn mechanical tubing is produced by drawing metal through a die at room temperature, enhancing its dimensional accuracy, surface finish, and mechanical properties, making it ideal for precision engineering and high-stress applications.

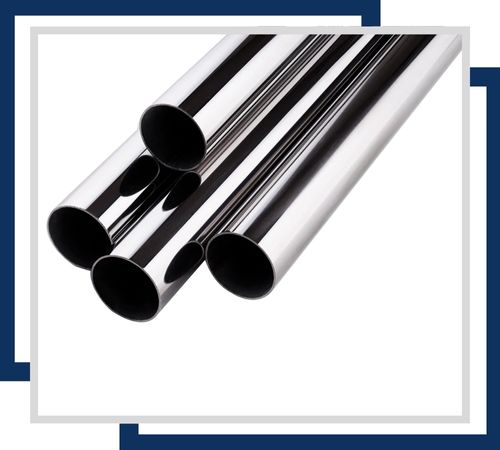

Heat-treated mechanical tubing is metal tubing that has undergone controlled heating and cooling processes to enhance its strength, hardness, and wear resistance, making it suitable for high-stress and high-performance applications.

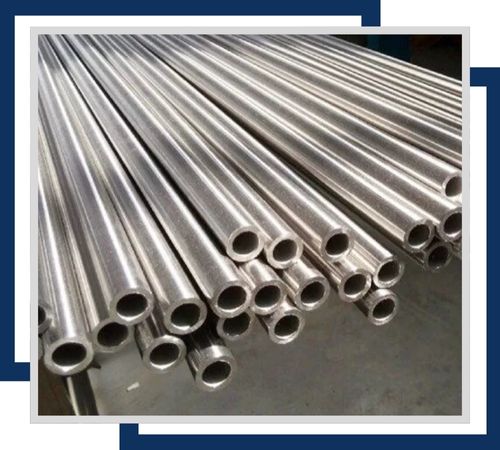

Seamless mechanical tubing is a type of tubing manufactured without welded seams, offering uniform strength and reliability. It’s used in high-pressure and critical applications due to its consistent performance and durability.
Stainless Steel Mechanical Tubing is utilized widely in machine frames, racking systems, architectural buildings, auto chassis, railings, and structural supports. Industries served by these tubes are manufacturing, construction, material handling, and aerospace ground support equipment. Their consistent wall thickness and stiffness make them a perfect application for welded construction and mobile structures. Harshita Stainless provides tubing solutions to OEMs and fabricators who are looking for accurate, corrosion-resistant mechanical tubing for durable assemblies throughout Delhi and India.
