Harshita Stainless provides a wide variety of Stainless Steel Forged Fittings made and delivered from Delhi, India. Elbows, tees, couplings, and crosses are forged in precision to make high-pressure and high-integrity pipes. These fittings are made of top-grade stainless steel that is certified for use according to ASTM, ASME, and DIN specifications. The fittings exhibit excellent mechanical strength and leak resistance. Harshita Stainless offers forged fittings between ¼″ and 4″ sizes, catering to oil & gas, petrochemicals, pharmaceuticals, and power generation sectors in India.
Forged fittings are produced in SS 304, 316, and 316L grades containing 18–20% chromium, 8–12% nickel, and molybdenum in 316 grades. Fittings provide tensile strength of 600–800 MPa and yield strength of approximately 300 MPa. Forging provides grain continuity, high toughness, and pressure handling capacity. Fittings provide dimension stability and high corrosion resistance as well as mechanical stress resistance, ensuring reliability and durability in harsh conditions.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

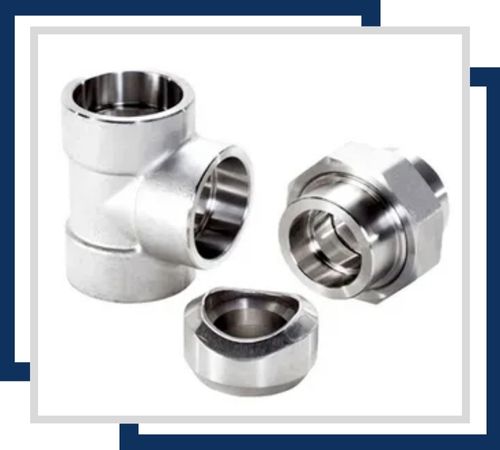

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

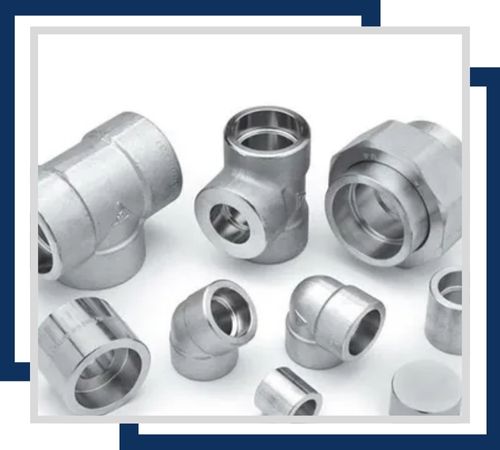

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

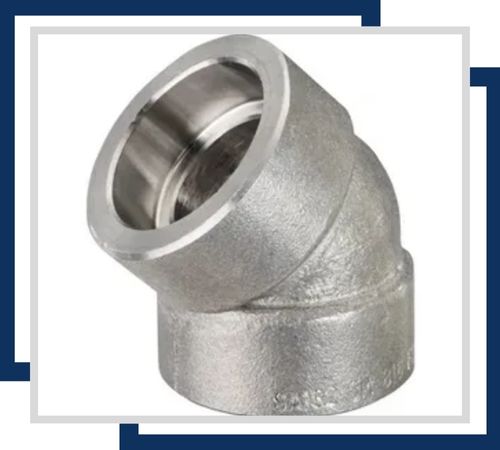

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.
Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

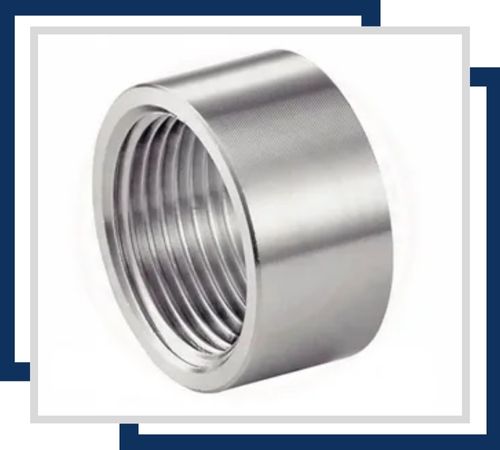

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

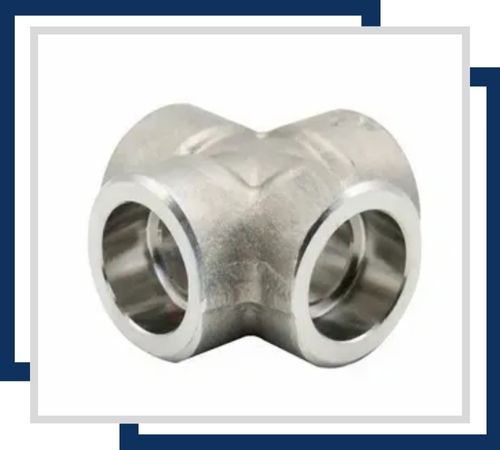

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless Steel Forged Fittings are utilized in high-pressure piping, hydraulic systems, chemical injection pipelines, and industrial valve systems. They suit oil & gas, petrochemical, shipbuilding, and power plants where pressure–safe and leak–free connections are essential. Uses involve subsea systems, steam systems, and petrochemical plants. Harshita Stainless supplies these fittings throughout Delhi and India, supporting safe, high-performance piping systems in demanding industry sectors.
