Home > Stainless Steel Diaphragm Valves
Harshita Stainless produces and exports Stainless Steel Diaphragm Valves from Delhi, India, for sanitary and corrosion-resistant flow control requirements in demanding industries. The valves consist of a flexible diaphragm that seals off against a weir or seat, providing leak-proof performance. Made of SS 304, 316, and 316L, these valves are suitable for hygienic processes like pharmaceuticals, food and beverage processing, and handling chemicals. We have manual and automated solutions for precise fluid control. Harshita Stainless ensures every valve is made to high-quality and performance standards for critical process use.
Our SS 316 or 316L diaphragm valves consist of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. These diaphragm valves show good corrosion resistance and mechanical strength with a pressure rating of up to 10 bar and up to 180°C temperature tolerance. The elastomer diaphragm provides a leak-tight seal, while stainless steel body can withstand chemicals and wear. Mechanical features are tensile strength of 500–700 MPa and great fatigue resistance, which allow for consistent performance in repetitive cycling.
| Body Material | Stainless Steel |
| Connection | Clamp / Weld |
| Operated | Plastic Handwheel |
| Seal | PTFE + EPDM (Double Layer) |
| Standard | 3A / BPE / DIN |
| Available Size | DN25 ~ DN65 / 1″ ~ 2 1/2″ |
| Structure | T Type |
| Max.Working Pressure | 10 Bar |
| Max. Working Temp. | 120 ℃ |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.

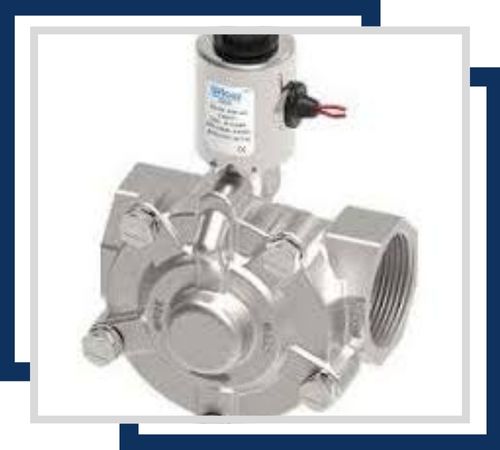

The stainless steel air to open actuated diaphragm valve, available in sizes from 1″ to 6″, features high corrosion resistance. Ideal for automated control, it ensures reliable flow regulation in various applications.
Stainless steel globe control valves, diaphragm operated, come in sizes from 1″ to 12″. These valves offer excellent corrosion resistance and precise flow control, suitable for high-pressure and temperature applications.
Wire diaphragm valves in stainless steel, available in sizes from 1″ to 6″, provide robust corrosion resistance and reliable sealing. They are ideal for handling slurries and aggressive fluids in industrial processes.

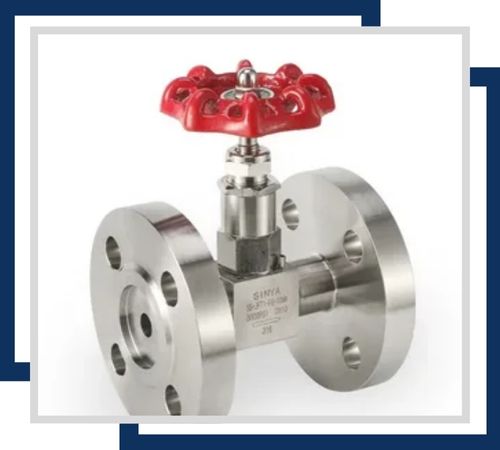

Stainless steel flow control valves, ranging from 1″ to 8″, offer excellent corrosion resistance and precision. Suitable for managing fluid flow in a variety of industrial and chemical applications.
Flanged diaphragm valves in stainless steel, available in sizes from 2″ to 12″, ensure high corrosion resistance and secure connections. They are ideal for precise flow control in demanding environments.

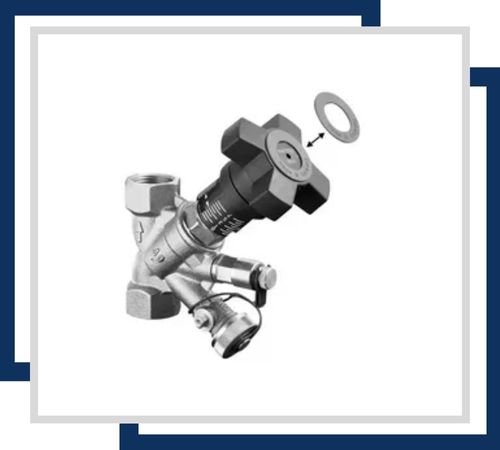

The stainless steel straightway diaphragm valve, sized from 1″ to 6″, features excellent corrosion resistance. Its straightway design facilitates efficient flow control and is suitable for various industrial applications.
Stainless Steel Diaphragm Valves are applied in biotech, pharmaceutical processing, food & beverage systems, ultrapure water lines, and chemical dosing. The design allows zero contamination and smooth flow control. They are perfect for corrosive or sterile applications and are critical in CIP/SIP systems, cleanroom processes, and laboratories. Their resistance to corrosive media and leak-proof sealing make them imperative in safety-relevant applications. Harshita Stainless provides diaphragm valves throughout Delhi and India with a full adherence to FDA, USP Class VI, and ASME BPE standards.
