Stainless Steel 904L Pipe Fittings are top-notch, corrosion-resistant components designed to connect different sections of piping in systems that demand exceptional durability and chemical resistance. Made from 904L stainless steel, which is a low-carbon austenitic alloy, these fittings are built to hold up in tough environments where regular stainless steels might falter. Their remarkable resistance to strong acids, chloride attack, and stress corrosion cracking makes them perfect for industries with high demands. With a blend of strength, weldability, and long-lasting performance, Stainless Steel 904L pipe fittings guarantee leak-proof, corrosion-resistant connections in critical fluid handling systems.
The chemical makeup of Stainless Steel 904L features 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper, all while keeping carbon content very low. This unique combination offers outstanding resistance to pitting and crevice corrosion, especially in acidic and chloride-rich environments. On the mechanical side, 904L boasts a tensile strength of about 490 MPa, a yield strength of 220 MPa, and an elongation of roughly 35%, providing good ductility and strength under pressure. These characteristics, along with its excellent weldability, make 904L a go-to choice for applications involving corrosive chemicals and high-temperature fluid flow.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 904L | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We ensures high standards of quality through rigorous testing and certification of the Stainless Steel 904L Pipe Fittings. Each product goes through rigorous analysis, such as chemical composition testing, mechanical testing, and pressure testing. Thus, the fitting is certified against international standards so that clients may rely on these products with complete assurance about reliability, performance, and compliance.

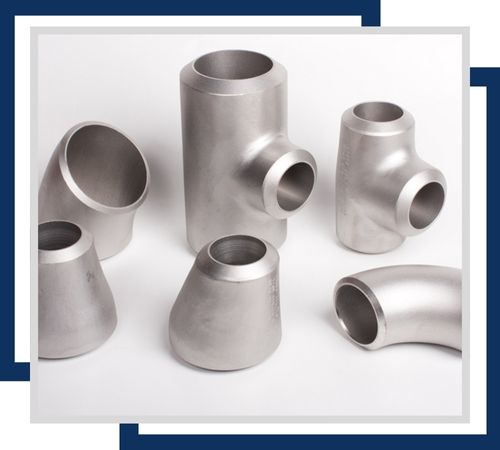

Stainless Steel 904L pipe fittings are high-quality, corrosion-resistant components designed for extreme environments, offering durability and reliability for industrial applications. Ideal for handling aggressive chemicals and high temperatures.

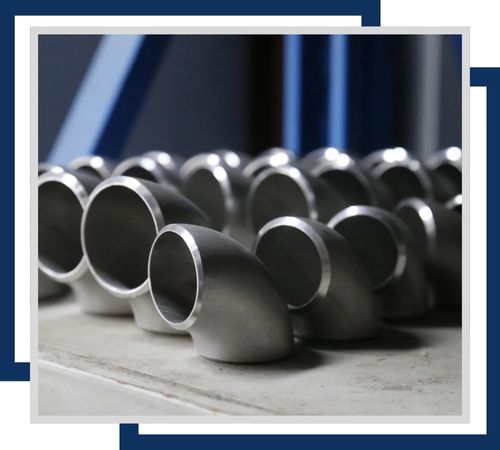

SS 904L butt weld pipe fittings are corrosion-resistant, high-strength components used to connect pipes in demanding environments. They provide durable, leak-proof joints for handling aggressive chemicals and high temperatures.

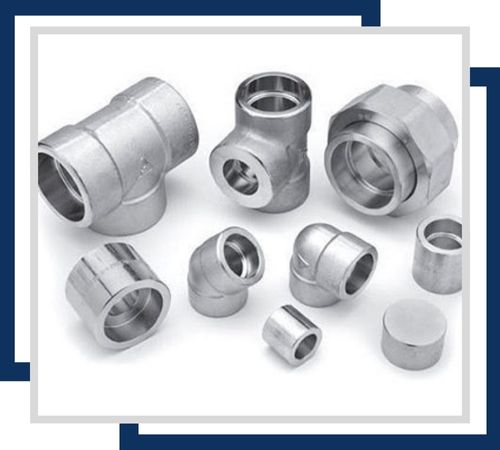

SS 904L socket weld pipe fittings are high-strength, corrosion-resistant components designed for secure, seamless connections. Ideal for high-pressure applications, they offer reliable, leak-proof joints in harsh chemical environments.

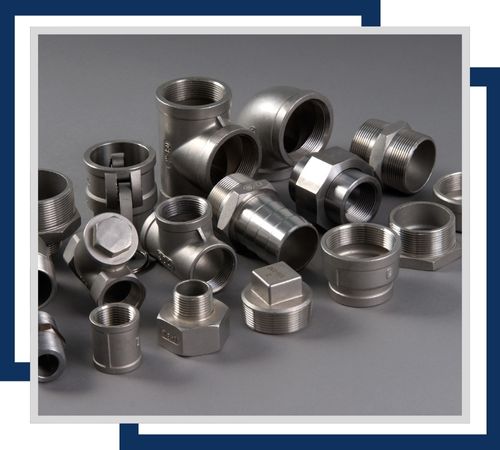

Stainless Steel 904L seamless fittings are high-performance, corrosion-resistant components crafted without joints, ensuring reliable, leak-proof connections. Ideal for harsh environments with aggressive chemicals and high temperatures.

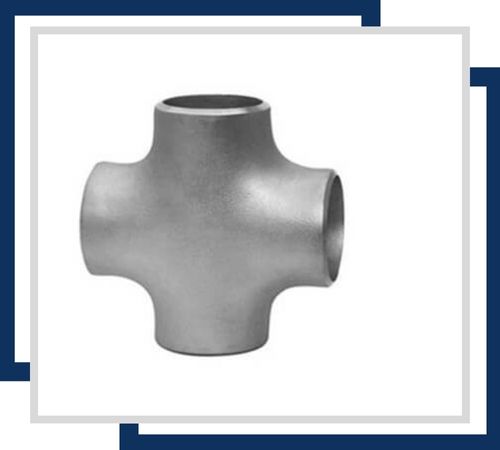

SS 904L cross pipe fittings are durable, corrosion-resistant components used to join four pipes at a central point. Ideal for high-pressure and chemical environments, ensuring reliable, leak-proof connections.

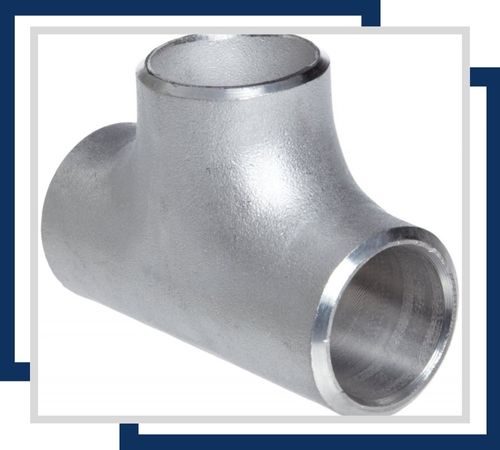

Stainless Steel 904L tee fittings are robust, corrosion-resistant components designed to connect three pipes at a right angle. They ensure strong, leak-proof joints, suitable for high-temperature and aggressive chemical applications.
Stainless Steel 904L Pipe Fittings find their place in various industries, including chemical processing, oil and gas refining, marine engineering, pharmaceuticals, and power generation. They shine in systems that come into contact with sulfuric acid, phosphoric acid, and seawater. Common uses include heat exchangers, acid transport lines, scrubber systems, and seawater cooling systems. Their exceptional resistance to chemical attacks, high temperatures, and mechanical stress ensures a long service life, less maintenance, and dependable operation, even in challenging or fluctuating conditions.
