Harshita Stainless is a well-known manufacturer and exporter of 904L Stainless Steel Flanges in Delhi, India. These flanges are specifically designed for highly corrosion–prone environments and are suitable for chemical, marine, and offshore purposes. SS 904L flanges are available in several types—weld neck, slip-on, blind, threaded, and lap joint—with features of high strength, high weldability, and long life. Our flanges are produced as per ASTM A182 and ASME B16.5 specifications and undergo quality inspection and precise dimensions. Harshita Stainless provides these high-quality flanges to various industries all over India, which require trustworthy jointing solutions for aggressive gas and fluid systems.
SS 904L has high chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%) contents, which impart greater resistance to sulfuric and reducing acids. These flanges possess tensile strength of 490 MPa, yield strength of 220 MPa, and good ductility and toughness. They are pitting, crevice corrosion, and stress corrosion cracking resistant, suitable for severe service conditions. Austenitic structure of these flanges makes them good formability and weldability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

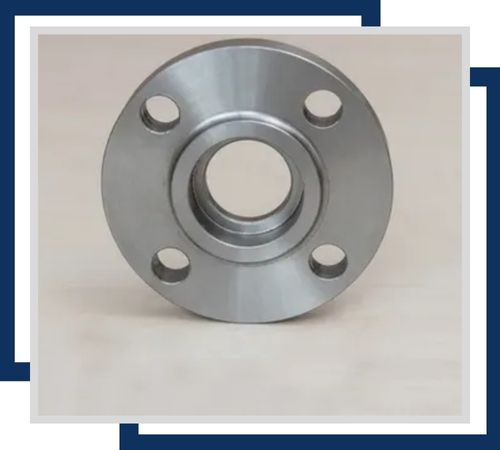

SS 904L Slip On Flanges offer excellent corrosion resistance, high strength, and durability for industrial applications, ensuring reliable performance.

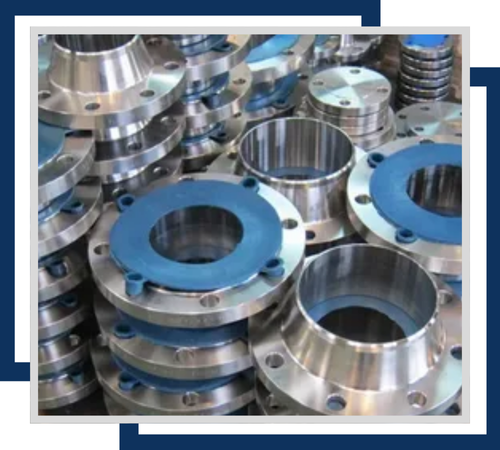

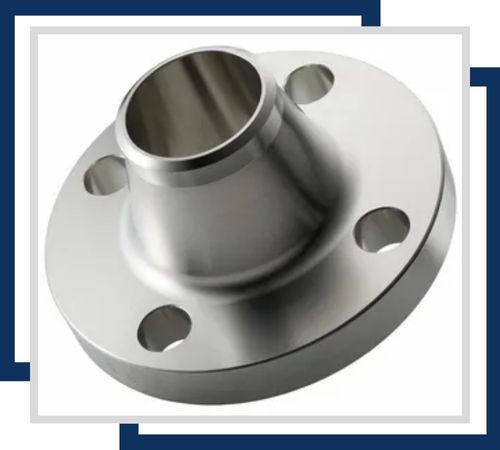

SS 904L long weld neck flanges are engineered for high-strength applications requiring extended weld connections. They offer exceptional corrosion resistance and structural integrity, making them suitable for demanding industrial environments.

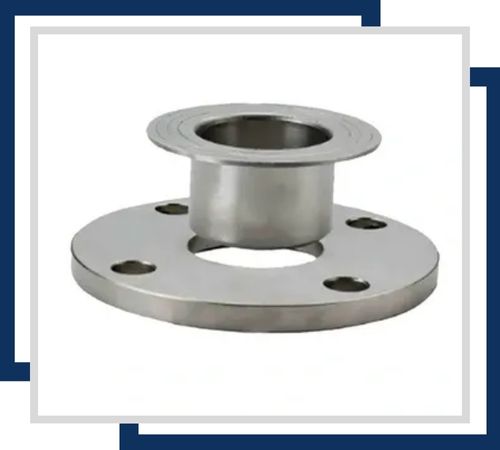

SS 904L lap joint flanges are designed for flexibility and ease of assembly, featuring excellent corrosion resistance and strength. Their superior durability makes them ideal for applications in aggressive environments and high-pressure systems.

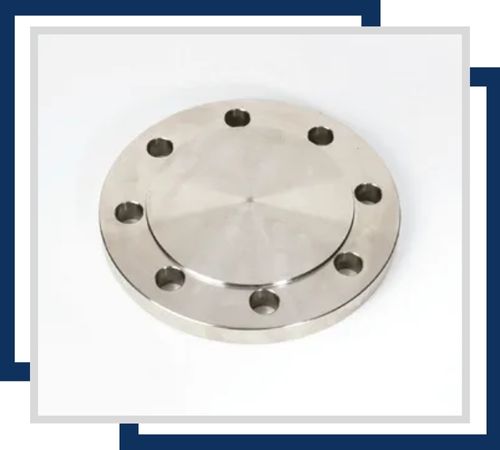

SS 904L Blind Flanges provide strong corrosion resistance, high durability, and are ideal for sealing pipe ends in demanding environments.
SS 904L Flanges have extensive use in acid processing equipment, marine, chemical plants, fertilizer units, and heat exchangers. Their superior corrosion resistance enables them to be used in pharmaceutical, pulp & paper, and desalination plants. They are used in chlorides, strong acids, and saltwater handling systems. They provide leak-proof and strong connections in pressure vessels and pipelines. Harshita Stainless offers SS 904L flanges throughout Delhi and India, including vital parts for industries needing dependability under high-temperature and corrosive conditions.
