Harshita Stainless, a well-known Dubai-based manufacturer and supplier, is famous for supplying high–quality stainless steel products, such as high-performance Stainless Steel 348 Flanges. Priced to satisfy the stringent requirements of chemical processing, petrochemical, and pharmaceutical industries, these flanges have outstanding resistance to high temperatures, oxidation, and corrosive substances. With emphasis on precision engineering, quality assurance, and prompt delivery, Harshita Stainless provides reliable solutions for mission-critical operations. No matter your requirements in Delhi or other industrial centers, Harshita Stainless provides trustworthy stainless steel flange products for long-term viability and process efficacy.
Stainless Steel 348 Flanges are made of a niobium-stabilized austenitic stainless steel alloy consisting mainly of 18–20% chromium, 9–12% nickel, and iron, with the addition of niobium in proportions approximately 10 times greater than the carbon content to avoid carbide precipitation. It improves resistance to intergranular corrosion, particularly following welding or long-term high-temperature exposure. Mechanical properties are tensile strength of 515–690 MPa, yield strength of 205 MPa, and elongation of 40% in 50 mm. The flanges have good weldability, formability, and heat stability and are suitable for harsh operational conditions.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| SS 348 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 348 Flanges Harshita Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Harshita Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

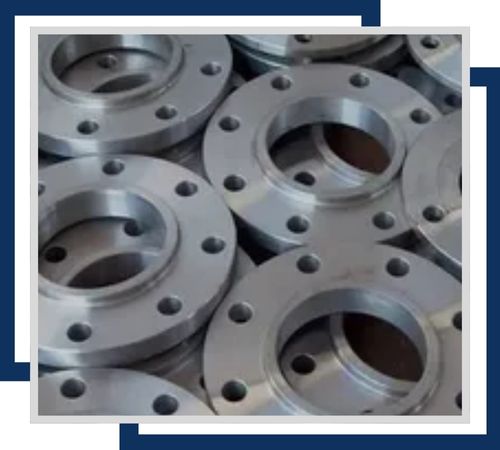

SS 348 blind flanges are used to seal the end of a piping system. Crafted from stainless steel, they offer high strength, corrosion resistance, and durability, making them suitable for high-pressure applications.

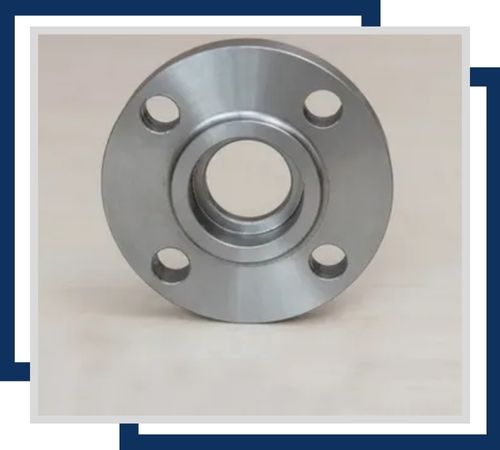

SS 348 ring type joint flanges ensure a secure, leak-proof seal in high-pressure applications. Constructed from stainless steel, they feature a precision-machined ring groove for enhanced sealing performance and durability.
SS 348 forged flanges are high-strength components designed for demanding applications. Made from stainless steel through a forging process, they offer superior durability, corrosion resistance, and reliability in high-pressure systems.
Stainless Steel 348 Flanges are widely applied in high-temperature and corrosive applications, mainly in the aerospace, chemical processing, petrochemical, and power industries. Their resistance to oxidation and intergranular corrosion stability render them effective for application in heat exchangers, boilers, reactors, and other systems that process aggressive chemicals at high temperatures. Stabilization with niobium (columbium) resists sensitization during welding, which improves performance in fabrication-intensive applications. Because of their high mechanical strength and corrosion resistance against sulfuric and phosphoric acids, SS 348 flanges are also relied upon in fertilizer plants, refineries, and steam piping systems for dependable long-term operation.
