Trustworthy producers in Dubai and India manufacture Stainless Steel 347/347H sheets and plates that meet ASTM A240 and ASME SA240 standards. Grade 347 (CB-stabilized) and 347H (higher carbon) are designed for excellent performance in high-temperature oxidizing environments. Available in thicknesses up to 100 mm and surface finish options from 2B to mirror or embossed, these materials go through heat treatment and certification to meet international standards. Supplied to oil and gas, aerospace, power generation, and chemical industries, these sheets and plates guarantee material integrity, corrosion resistance, and long-term service under demanding conditions.
SS 347/347H is composed of 17% to 20% chromium, 9% to 13% nickel, a maximum of 2% manganese, a maximum of 0.75% silicon, and stabilization through columbium/tantalum (at least 10 times carbon). The maximum carbon content is 0.08% for 347 and 0.10% for 347H. These alloys show tensile strengths of approximately 515 to 620 MPa, yield strengths of around 205 to 275 MPa, and elongation of about 35%. Stabilization minimizes grain-boundary carbide precipitation, improving resistance to intergranular corrosion at high temperatures. 347H provides better creep strength above 800 °F. These alloys combine strength, weldability, and thermal stability in thicker sections.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.
Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

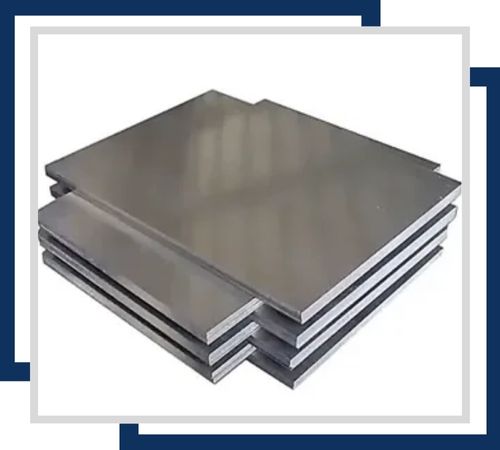

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

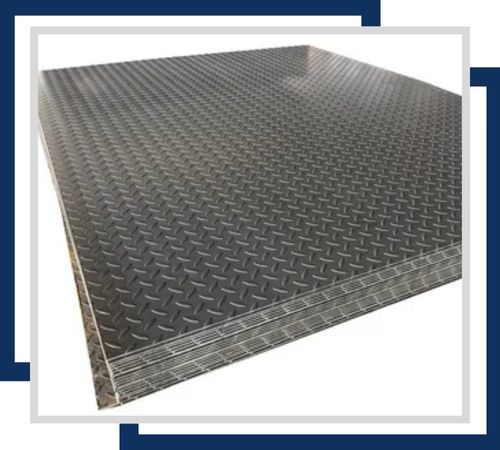

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

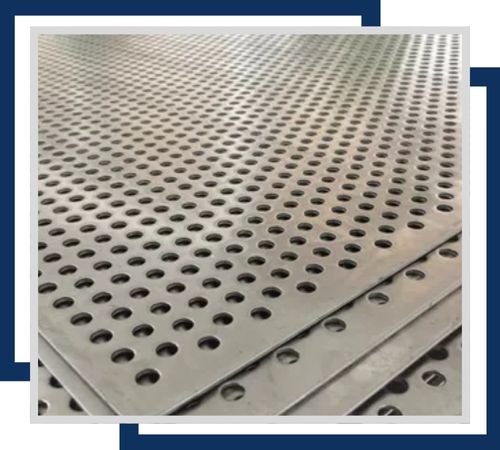

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

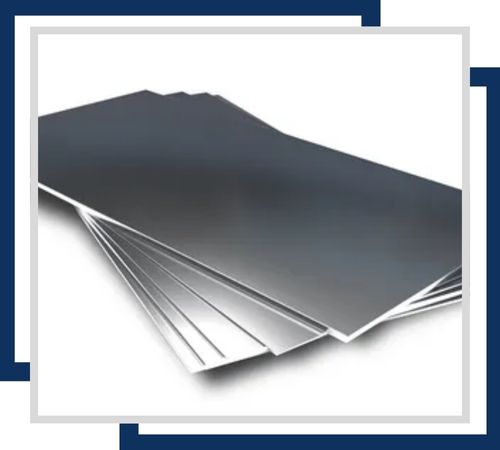

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

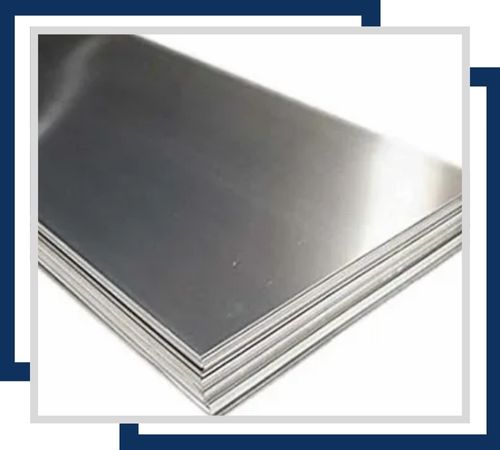

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Harshita Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
