Stainless Steel 321H Tubing is a high-carbon variant of titanium-stabilized austenitic stainless steel, specifically crafted for high-temperature applications that demand superior creep strength and long-lasting durability. The increased carbon content in 321H enhances its mechanical performance at elevated temperatures, making it a top choice for heat exchangers, superheaters, and high-pressure steam systems. This tubing boasts impressive resistance to oxidation and intergranular corrosion, even after extended exposure to heat. Its excellent weldability and formability make it a go-to option in industries where reliable performance under thermal stress is crucial.
The chemical makeup of Stainless Steel 321H features 17–19% chromium, 9–12% nickel, and a higher carbon content that ranges from 0.04% to 0.10%. It also includes titanium in an amount at least five times that of the carbon content, which helps stabilize the alloy against carbide precipitation during welding and high-temperature exposure. The tubing provides a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, along with good ductility and resistance to scaling up to 900°C (1650°F). These mechanical properties make 321H tubing a dependable choice for pressure-containing components in thermal environments.
Standard ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
Range 1/2″ NB TO 24″ NB IN SCH 5, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 & XXS as Per NACE MR 01 75
Thickness 0.3mm – 50 mm
Outer Diameter 6.00 mm OD up to 914.4 mm OD
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded/ Fabricated
Form Round, Square, Rectangular, Hydraulic, etc.
Length Single Random, Double Random & Cut Length
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 321H tubing through rigorous testing and certification processes. Each tube undergoes a thorough evaluation, including hydrostability, chemical testing and mechanical testing. Certified to international standards such as ASTM and ASME, these containers provide reliability, durability and high performance in demanding industrial applications.

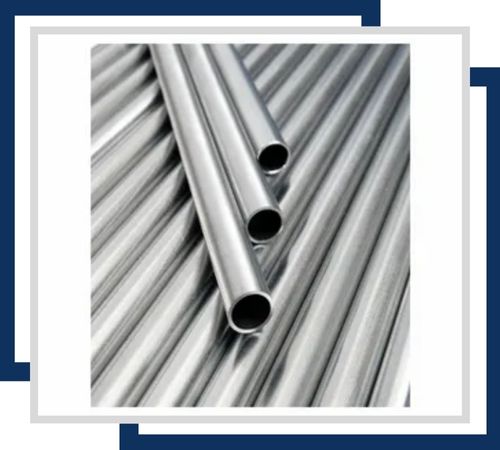

This tubing is available in sizes ranging from 1/8″ to 24″ in outer diameter. It offers excellent corrosion resistance, especially against intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 427-816°C. Ideal for high-temperature applications requiring a continuous, strong, and uniform surface.

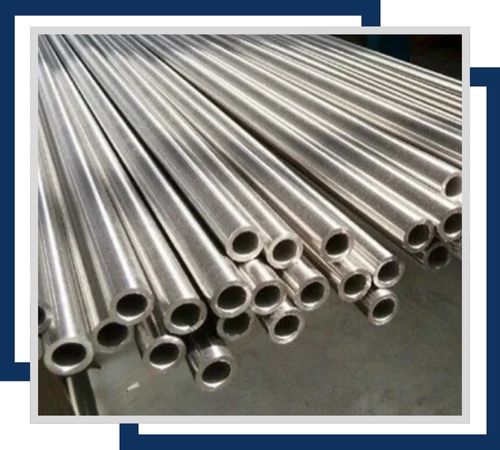

Available in dimensions from 1/8″ to 36″ in outer diameter, this tubing is known for its high resistance to stress and pitting corrosion. It’s frequently used in chemical processing and other high-temperature applications due to its robust performance under harsh conditions. The welding process ensures a strong, durable, and leak-proof seam
These tubes come in sizes from 1/4″ to 1″ in outer diameter, designed for excellent thermal conductivity and corrosion resistance. Ideal for high-temperature and high-pressure environments, they are used in industries such as petrochemical and power generation. Their composition resists scaling and oxidation even at elevated temperatures.

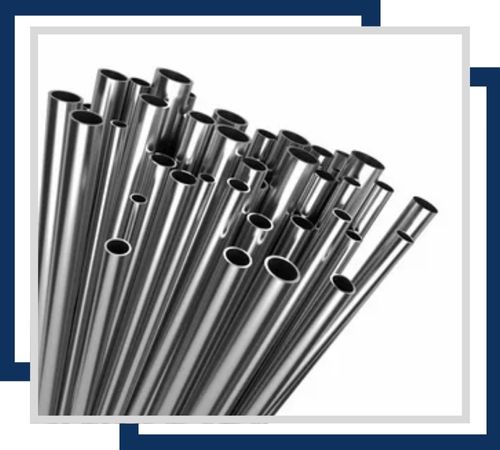

Offered in sizes from 1/8″ to 2″ in outer diameter, this tubing provides superior resistance to corrosion and high temperatures. It is used in precision instrumentation and control systems, ensuring reliable performance and accurate measurements. The tubing’s stability at high temperatures ensures minimal expansion and contraction.

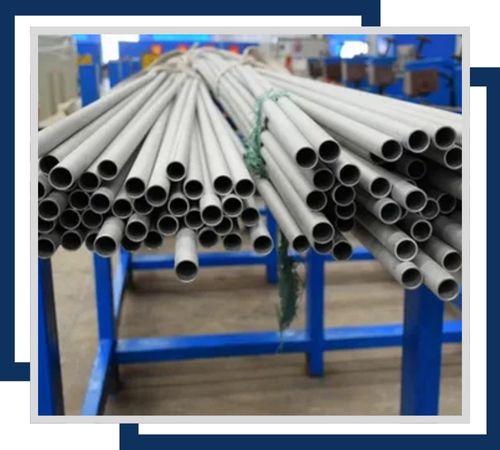

These tubes, ranging from 1/2″ to 5″ in outer diameter, are designed to withstand high-pressure and high-temperature environments typical in boiler systems. They offer excellent corrosion resistance, especially against steam and hot gases. Their durability ensures long service life and reliability in energy and industrial applications.

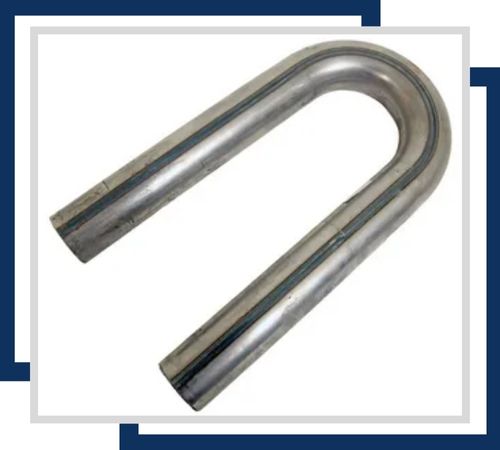

Available in sizes from 1/4″ to 1″ in outer diameter, U-tubes are essential for heat exchanger applications requiring a compact and efficient design. They provide excellent corrosion resistance and thermal stability, making them suitable for use in petrochemical, oil refining, and power generation industries. The U-shape allows for efficient heat transfer in limited spaces.

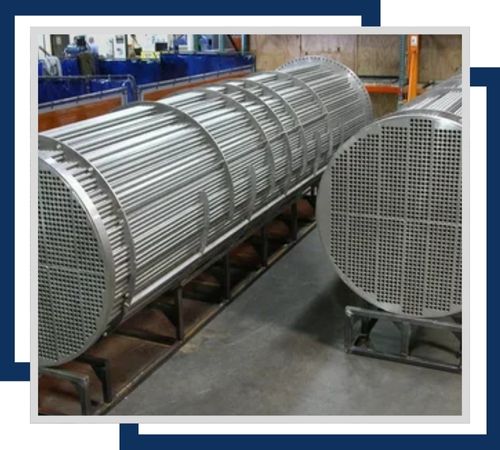

These tubes come in sizes ranging from 1/4″ to 1″ in outer diameter and are designed for use in condenser applications where efficient heat transfer and resistance to corrosion are critical. They are commonly used in power plants, HVAC systems, and refrigeration. The tubes ensure minimal fouling and scaling over prolonged use.

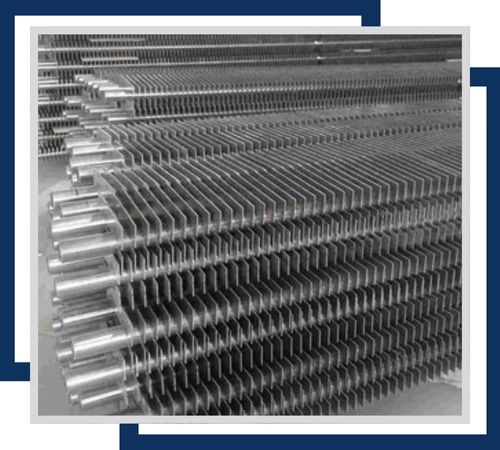

Fin tubes are available in sizes from 1/2″ to 2″ in outer diameter, designed to enhance heat transfer efficiency in various industrial applications. The addition of fins increases the surface area, improving thermal performance. These tubes offer excellent resistance to high-temperature oxidation and corrosion, making them ideal for heat exchangers and boilers.
Stainless Steel 321H Tubing finds extensive use in high-temperature and high-pressure settings, such as petrochemical processing, power generation, aerospace, and refinery systems. Typical applications include steam piping, superheater tubes, heat exchanger tubes, and radiant heater tubes. Its resistance to thermal fatigue and stress rupture makes it perfect for cyclic heating operations. Plus, it performs admirably in mildly corrosive environments, making it a versatile material for demanding industrial tasks where both thermal and mechanical stability are essential.
