Stainless Steel 317L Tubing is a low-carbon, molybdenum-rich austenitic stainless steel that stands out for its exceptional resistance to corrosion, particularly in harsh chemical settings. The lower carbon content in 317L plays a crucial role in preventing intergranular corrosion during welding and exposure to high temperatures, making it a dependable option for applications that deal with aggressive chemicals, high chloride levels, and acidic environments. With its impressive strength and structural integrity, SS 317L tubing is perfect for heat exchangers, chemical processing lines, marine systems, and pharmaceutical equipment, where durability and cleanliness are key.
Typically, the chemical makeup of Stainless Steel 317L consists of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, with a maximum carbon content capped at 0.03%. The inclusion of molybdenum boosts its resistance to pitting and crevice corrosion in chloride-heavy environments, while the low carbon content enhances its weldability. In terms of mechanical properties, it boasts a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, along with good elongation and toughness. SS 317L tubing retains excellent corrosion resistance and mechanical stability, even when faced with high temperatures and pressure.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| Value Added Services |
|
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We offers thorough testing and certification of its stainless steel 317L tubing, ensuring the highest quality and performance. Each batch undergoes rigorous inspection, including mechanical testing, chemical analysis and pressure testing. Certifications are issued, proving compliance with international standards as well as good reliability and customer-specific requirements.

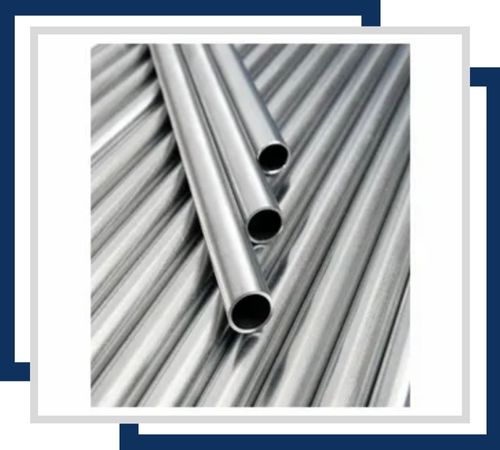

Stainless Steel 317L seamless tubing is a corrosion-resistant alloy ideal for chemical, pharmaceutical, and food processing industries, offering superior strength, weldability, and durability in harsh environments.

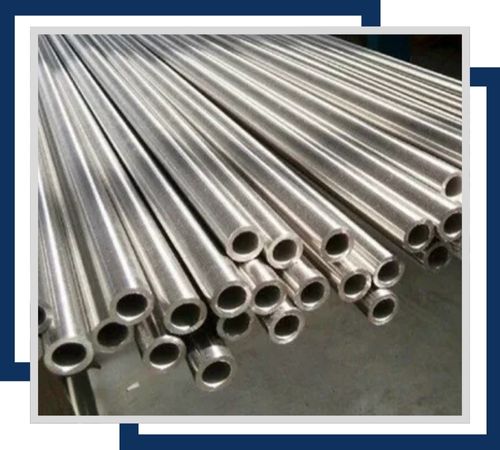

Stainless Steel 317L welded tubing is highly resistant to corrosion, ideal for chemical, pharmaceutical, and food processing industries, offering excellent weldability, strength, and durability in demanding environments.

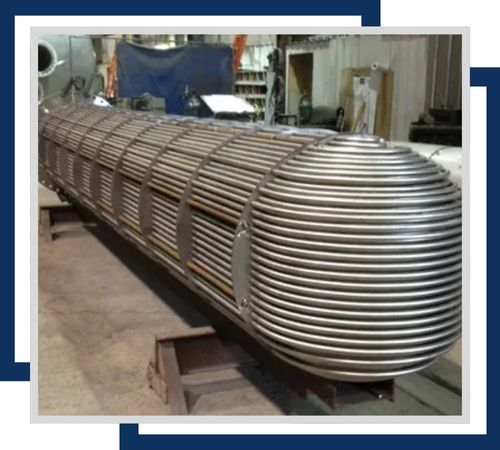

Stainless Steel 317L heat exchanger tubes provide excellent resistance to corrosion and high temperatures, making them ideal for use in chemical, petrochemical, and power generation industries with superior heat transfer performance

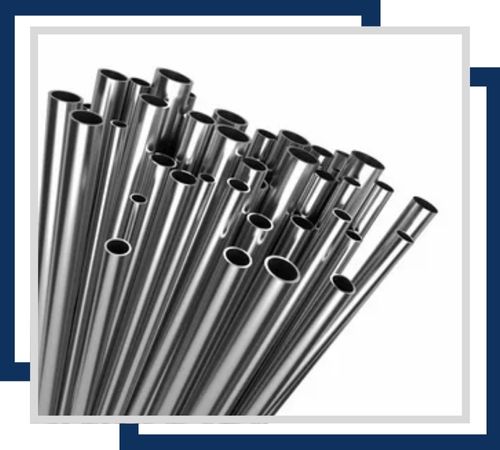

Stainless Steel 317L instrumentation tubing offers high corrosion resistance and excellent durability, making it ideal for precise applications in chemical, petrochemical, and pharmaceutical industries, ensuring reliable performance in demanding environments.
Stainless Steel 317L boiler tubes are designed for high-temperature and corrosive environments, providing exceptional resistance to oxidation and scaling, making them ideal for industrial boilers and heat exchangers.

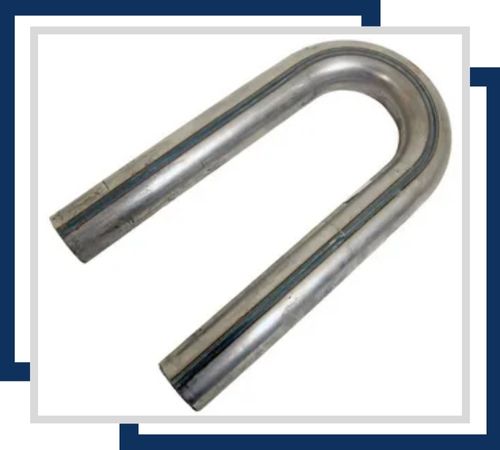

Stainless Steel 317L U-tubes offer high corrosion resistance and durability, ideal for heat exchangers and industrial applications requiring exceptional performance under harsh conditions and high temperatures.

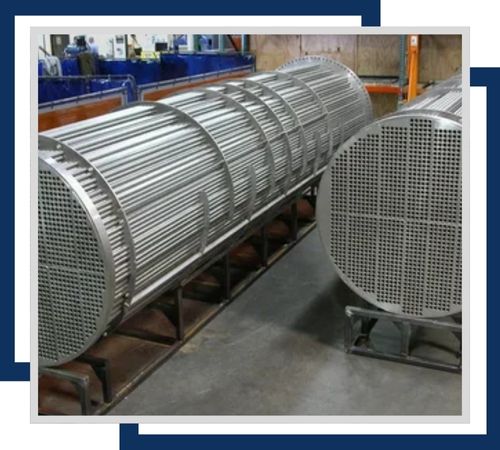

Stainless Steel 317L condenser tubes provide excellent resistance to corrosion and high temperatures, making them perfect for use in heat exchangers and cooling systems in chemical and petrochemical industries.
Stainless Steel 317L fin tubes enhance heat transfer efficiency with superior corrosion resistance, making them ideal for applications in heat exchangers, air coolers, and industrial processes requiring reliable performance.
You’ll find Stainless Steel 317L Tubing widely used across various industries, including chemical and petrochemical processing, pulp and paper, food and beverage, marine, and pharmaceuticals. Common applications involve fluid transport systems, heat exchangers, condensers, and process piping that come into contact with corrosive substances. Its remarkable resistance to sulfuric acid, acetic acid, and other aggressive chemicals makes it particularly valuable in environments that can compromise standard stainless steel grades. Plus, 317L tubing is ideal for hygienic and sterile settings, thanks to its smooth surface finish and its ability to resist contamination and corrosion over time.
