Stainless Steel 316Ti sheets and plates are supplied by manufacturers in Dubai and India for tough applications involving heat, corrosion, and pressure. Grade 316Ti is a titanium-stabilized austenitic stainless steel that prevents intergranular corrosion during high-temperature service or after welding. These sheets and plates come in hot-rolled or cold-rolled forms and meet ASTM A240 standards. Ideal for food processing, chemical equipment, heat exchangers, and marine components, they offer excellent formability, strength, and durability. 316Ti’s resistance to oxidation and acidic corrosion ensures long-lasting performance in aggressive and temperature-sensitive settings.
316Ti includes 16 to 18% chromium, 10 to 14% nickel, 2 to 3% molybdenum, and titanium at least 5 times the carbon percentage. It has tensile strength of 515 to 620 MPa, yield strength of around 205 MPa, and elongation of about 30 to 35%. The titanium content stabilizes the alloy against sensitization, improving corrosion resistance during heat exposure. 316Ti maintains strength, ductility, and corrosion resistance in chloride-heavy or acidic conditions. These sheets and plates are non-magnetic, highly weldable, and suitable for heavy-duty structural and chemical processes where consistent mechanical properties are necessary across different temperatures.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | – | 10.0 | – | – | – | – | – | 16.0 | 2.00 |
| max. | 0.08 | 14.0 | 0.75 | 0.10 | 0.030 | 2.00 | 0.045 | 18.0 | 3.00 |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
Contact us to get a quick quote for your requirement.
Stainless Steel 316Ti Hot Rolled Sheet and Plates are highly resistant to high temperatures and corrosion, making them suitable for chemical processing and petrochemical industries. They are very durable and can be used in demanding industrial applications.

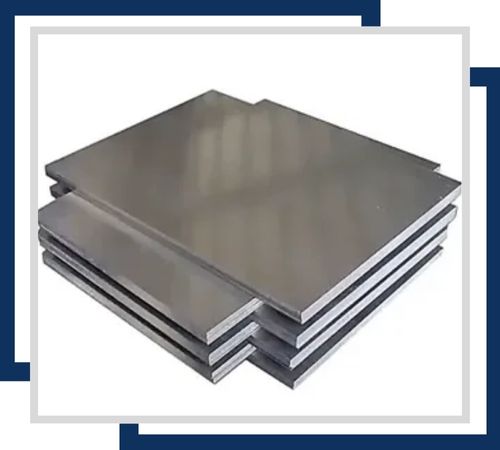

Stainless Steel 316Ti Cold Rolled Sheet and Plates have a smooth surface finish and precise dimensions, making them ideal for applications requiring superior resistance to high temperatures and corrosion, such as in marine and chemical environments.
The stainless steel 316Ti chequered sheet and plates are provided with slip resistance and durability that can be utilized for flooring and stair treads in industrial as well as commercial applications. These provide excellent corrosion resistance and high-temperature stability.

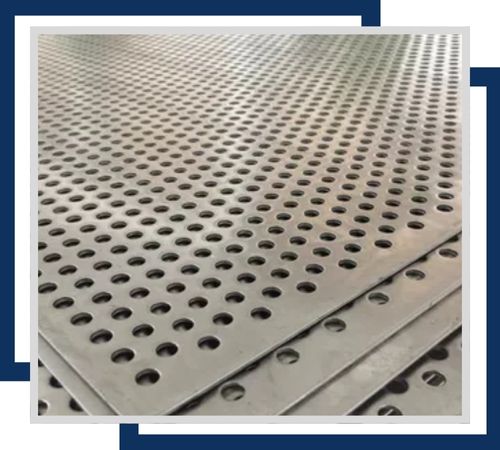

Stainless Steel 316Ti Perforated Sheet and Plates are used for filtration, ventilation, and as decorative purposes. They combine the strength of resistance against corrosion with the aesthetic value while having accurate perforations to add custom design and functionality in extreme environments.

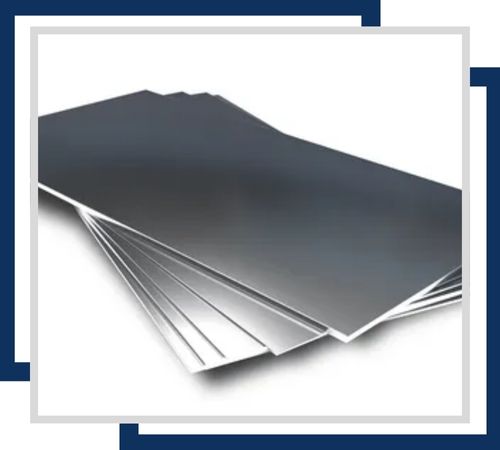

Stainless Steel 316Ti Shim Sheet and Plates are used in machinery and equipment for precise spacing and alignment. With high-temperature resistance and resistance against corrosion, they provide stability and durability in critical industrial applications.

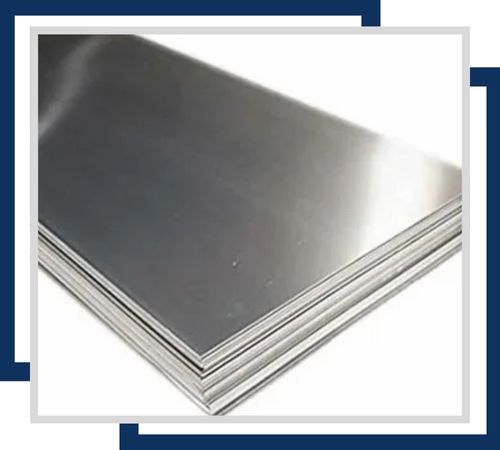

Stainless Steel 316Ti Polished Sheet and Plates have an excellent quality, reflective finish, making them very good for architectural and decorative applications. They have outstanding corrosion and high-temperature resistance, so they provide environment where performance and appearance both are important are worthwhile.
Harshita Stainless providing hassle-free experience for our customers, offering them with complete documents regarding high-quality Stainless Steel 316Ti Sheets and Plates from us. Important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports ensure that the products come from the source of authenticity and of superior quality. In addition, our Stainless Steel 316Ti Sheets and Plates are provided with different test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection certificates to ensure full customer satisfaction along with continuous efforts toward product excellence.
SS 316Ti sheets and plates go into applications such as heat exchangers, pressure tanks, marine fixtures, flue gas cleaning systems, and food-grade containers. They are well-suited for equipment exposed to hot organic and inorganic acids, particularly in the chemical and pharmaceutical industries. The titanium stabilization provides resistance to weld decay and intergranular corrosion in heat-affected areas. These plates are also used in marine pipelines, offshore oil platforms, and high-temperature processing facilities. With good strength and a great surface finish, 316Ti is suitable for both aesthetic and structural components in harsh industrial settings.
