Stainless Steel 316L Tubing is a low-carbon variant of the molybdenum-bearing austenitic stainless steel 316, crafted specifically to enhance corrosion resistance and improve weldability. Thanks to its reduced carbon content, 316L minimizes the risk of carbide precipitation during welding, making it a go-to choice for projects that involve heavy fabrication or need to withstand harsh environments. With outstanding resistance to pitting, crevice corrosion, and attacks from chlorides, SS 316L tubing shines in marine, pharmaceutical, and chemical processing sectors. It promises long-lasting durability, impressive strength, and clean internal surfaces, making it perfect for critical fluid handling systems.
The chemical makeup of Stainless Steel 316L features 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a maximum carbon content capped at 0.03%. This blend offers exceptional corrosion resistance, especially against chlorides and acidic solutions, while still keeping solid mechanical properties. Typically, 316L tubing boasts a tensile strength of around 485 MPa and a yield strength of about 170 MPa, along with excellent ductility, toughness, and formability. It also holds up well under both high and low temperatures, making it versatile for a wide range of operating conditions.
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| SS 316 – 316L Pipes | 1/2″ NB – 16″ NB |
| ERW 316 – 316L Pipes | 1/2″ NB – 24″ NB |
| EFW 316 – 316L Pipes | 6″ NB – 100″ NB |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Weight % | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| 316L | .035 | 2.00 | .045 | .030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Grade | Tensile | ||||
|---|---|---|---|---|---|
| Ultimate/Min | Yield/Min | Elongation/Min | |||
| KSI | MPA | KSI | MPA | % | |
| 316L | 70 | 485 | 25 | 170 | 35 |
Contact us to get a quick quote for your requirement.
All Stainless Steel 316L Tubing manufactured at Harshita Stainless undergoes tensile strength, corrosion resistance, and dimensional accuracy checks. Our products carry international certifications like ASTM, ASME, and ISO standards. Complete material test certificates with each delivery assure a quality, reliability basis, and specifications that are in line with the industry.

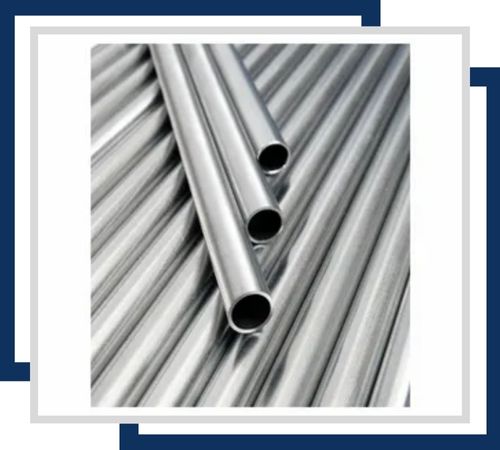

Offering excellent corrosion resistance, Stainless Steel 904L Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.

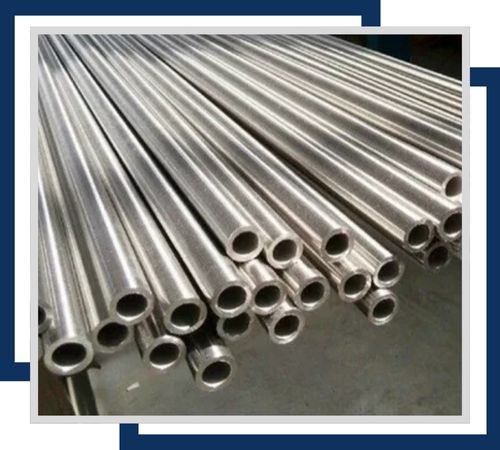

Stainless Steel 904L Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.

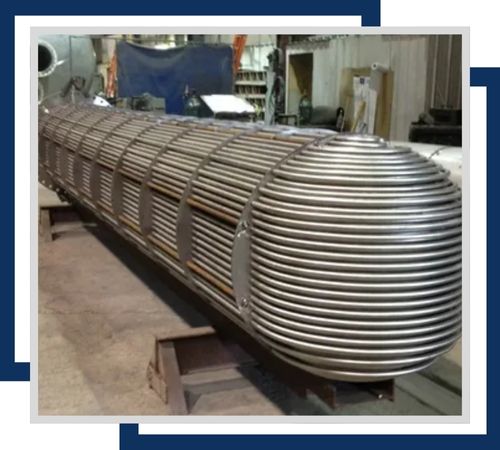

Featuring outstanding corrosion resistance, Stainless Steel 904L Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.
Stainless Steel 904L Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.

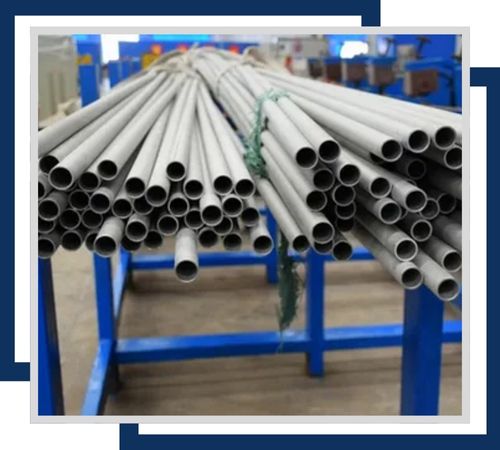

With superior resistance to both oxidation and corrosion, Stainless Steel 904L Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.

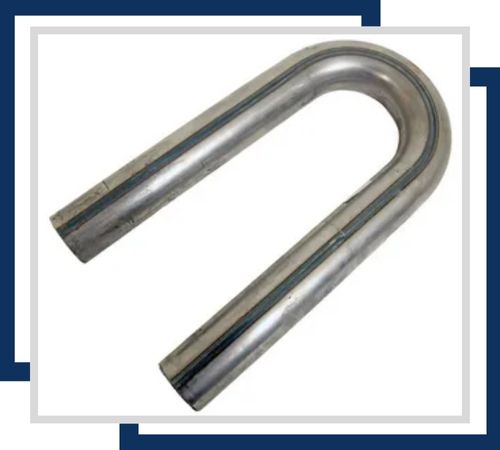

Stainless Steel 904L U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

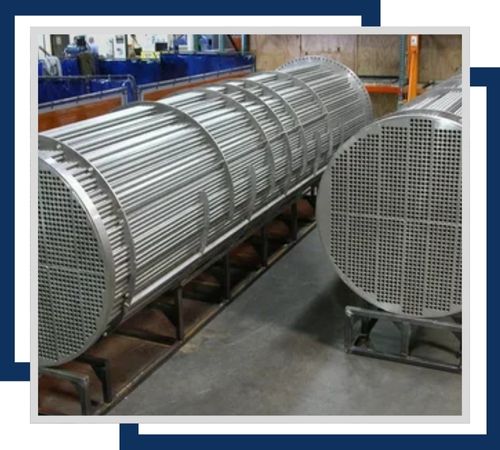

Stainless Steel 904L Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.
Stainless Steel 904L Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
You’ll find Stainless Steel 316L Tubing widely utilized across various industries, including pharmaceuticals, food and beverage, marine, chemical processing, oil and gas, and medical equipment. Its uses range from high-purity fluid transport and process piping to heat exchangers, hydraulic systems, and instrumentation lines. The tubing’s ability to resist corrosion in aggressive environments, paired with its cleanability and non-reactive surface, makes it a top choice for hygienic and sterile applications. Whether it’s on offshore platforms, in biopharma labs, or within industrial chemical plants, SS 316L tubing guarantees safe, efficient, and durable fluid transfer.
