Stainless Steel 316 valves are produced in Dubai and India for the control of fluids in hostile environments where resistance to corrosion is essential. Constructed using molybdenum-containing austenitic stainless steel, SS 316 valves are famous for their durability, strength, and superior performance in chloride-containing and acid systems. In ball, gate, globe, check, and butterfly types, these valves meet the specifications of ASTM and API. They can be used in chemical plants, food processing plants, marine applications, and pharmaceutical facilities. With excellent design and sealing strength, SS 316 valves are leak-proof in low- and high-pressure systems of flow.
SS 316 valves consist of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with ≤0.08% carbon. The addition of molybdenum increases resistance to pitting, crevice corrosion, and hostile chemical conditions. These valves have tensile strength 515–620 MPa and yield strength approximately 205 MPa with an elongation of up to 35%. SS 316 can withstand high temperatures and does not lose structural features when subjected to corrosive environments. Its good weldability, ductility, and non-magnetic property in the annealed state make it suitable for equipment used in process applications under thermal and chemical stress.
| Material | Stainless Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature | -29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter | DN40-DN300 handle lever |
| Operation Temperature | -10°C~150°C |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

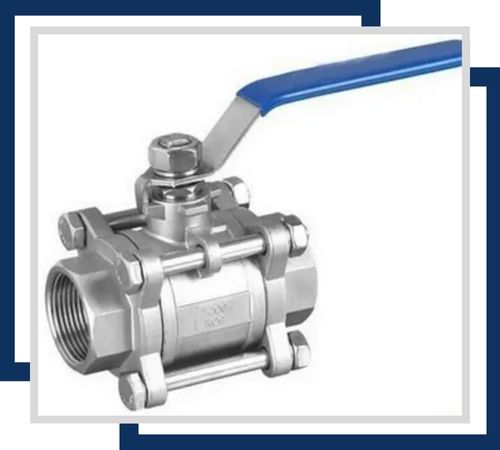

Stainless Steel 316 valves, available in sizes from 1/4″ to 12″, offer superior corrosion resistance and durability. Ideal for harsh environments, they ensure reliable performance in marine, chemical, and high-temperature applications.

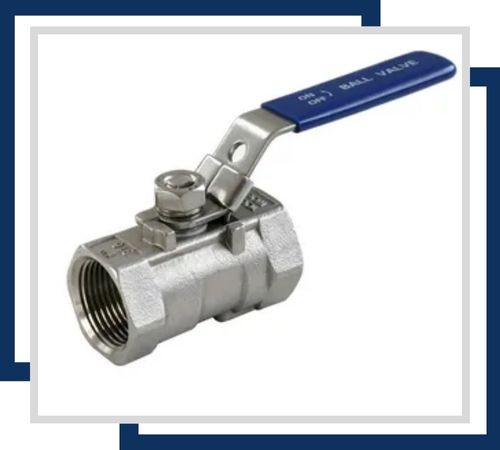

Stainless Steel 316 ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with excellent corrosion resistance. Suitable for aggressive fluids and high-pressure environments, they ensure robust and long-lasting performance.
Stainless Steel 316 butterfly valves, available from 2″ to 12″, offer efficient flow regulation with high corrosion resistance. Their durable construction makes them ideal for use in chemical processing and marine applications.

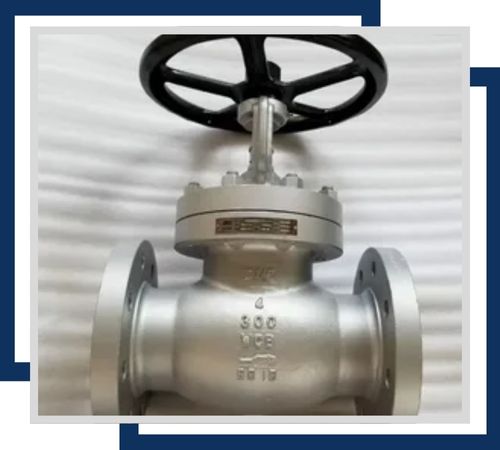

Stainless Steel 316 globe valves, sized from 1″ to 12″, deliver precise flow control with exceptional corrosion resistance. Perfect for high-pressure and high-temperature applications in industrial and marine environments.
Stainless Steel 316 needle valves, available in sizes from 1/4″ to 2″, provide accurate flow control and high corrosion resistance. Ideal for handling aggressive fluids and high-pressure systems.

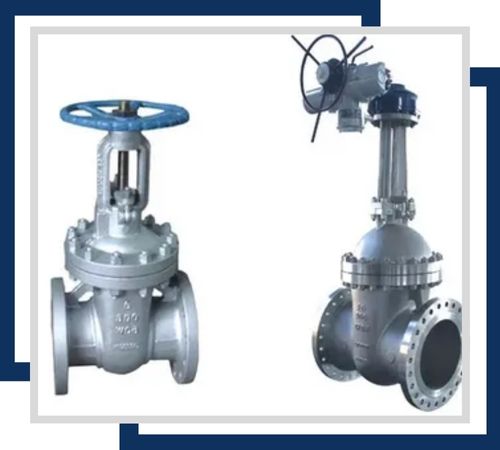

Stainless Steel 316 gate valves, sized from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Suitable for marine, chemical, and industrial applications, they ensure durability and performance.
Harshita Stainless ensures top-quality Stainless Steel 316 Valves through rigorous testing, including hardness, PMI, tensile, micro/macro structural, pitting resistance and IGC tests. We provide comprehensive documentation, including commercial invoices, packaging lists, labels and a Certificate of Origin legalized by the Chamber of Commerce or Embassy. A Third-Party Inspection Certificate guarantees customer satisfaction with pricing and delivery.
