A reputable manufacturer and supplier of stainless steel 316 pipes with headquarters in Delhi, India, Harshita Stainless is renowned for providing high-end stainless steel piping solutions for demanding applications. Harshita Stainless provides SS 316 pipes that satisfy both domestic and international standards, with an emphasis on accuracy, robustness, and resistance to corrosion. These pipes are well known for performing exceptionally well in extremely hot and corrosive conditions. Harshita Stainless provides dependable and affordable piping solutions to important industries like the food, chemical processing, marine, and pharmaceutical sectors. The company is supported by sophisticated manufacturing capabilities and a dedication to quality.
Chromium (16–18%), nickel (10–14%), and molybdenum (2–3%) make up stainless steel 316 pipes, with trace amounts of carbon, silicon, manganese, and iron. Molybdenum improves resistance to pitting and crevice corrosion. Along with good elongation and durability under high temperatures, these pipes have excellent mechanical strength, with a tensile strength of about 515 MPa and a yield strength of about 205 MPa. SS 316 is perfect for industrial and marine applications where corrosion resistance and structural dependability are crucial because it also offers exceptional resistance to chlorides and acidic environments.
| Specifications | ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358 |
| Dimensions | ASTM, ASME and API |
| SS 316 – 316L Pipes | 1/2″ NB – 16″ NB |
| ERW 316 – 316L Pipes | 1/2″ NB – 24″ NB |
| EFW 316 – 316L Pipes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Element | SS 316 |
| Ni | 10.0 – 14.0 |
| C | 0.08 |
| Mn | 2.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Si | 0.75 max |
| Cr | 16.0 – 18.0 |
| Mo | 2.00 – 3.00 |
| N | 0.10 |
| Element | SS 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 316 pipe through rigorous testing and certification. Each pipe is subjected to thorough testing, including chemical analysis, mechanical testing and design analysis. Certified to ASTM, ASME, and other industry standards, our products guarantee durability, corrosion resistance and exceptional performance in a variety of applications.

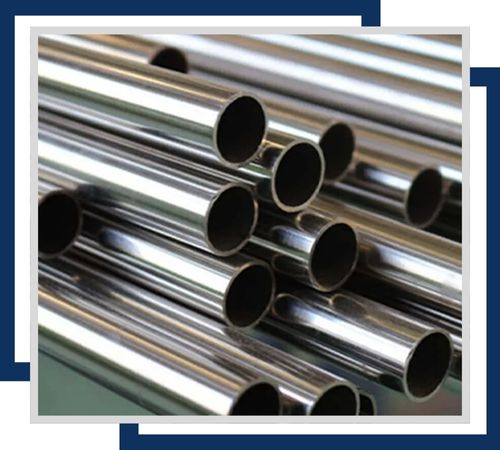

Stainless Steel 316 ERW (Electric Resistance Welded) pipes are made by welding stainless steel strips, providing excellent corrosion resistance and strength for marine, chemical, and industrial applications.

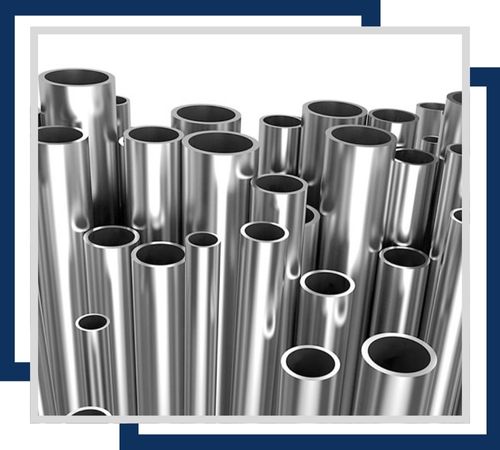

Stainless Steel 316 EFW (Electric Fusion Welded) pipes are produced through fusion welding of stainless steel plates, offering high corrosion resistance and durability for chemical and marine environments.

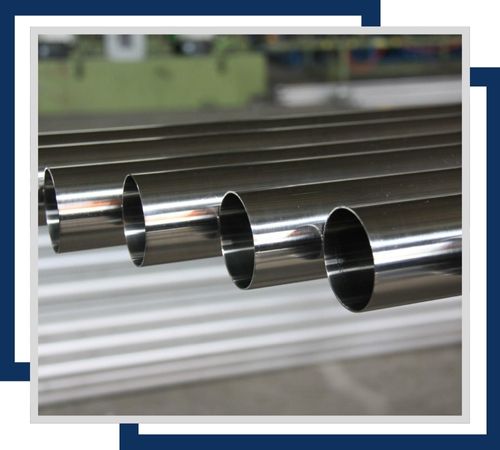

Stainless Steel 316 LSAW (Longitudinally Submerged Arc Welded) pipes are created using submerged arc welding, providing high strength and excellent resistance to corrosion, ideal for large-diameter, harsh environments.

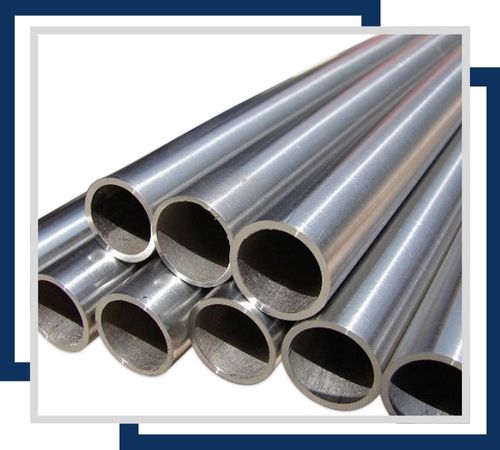

Stainless Steel 316 Seamless pipes are made without welding, ensuring uniform strength and exceptional corrosion resistance, ideal for critical applications in chemical processing, marine environments, and high-stress conditions.

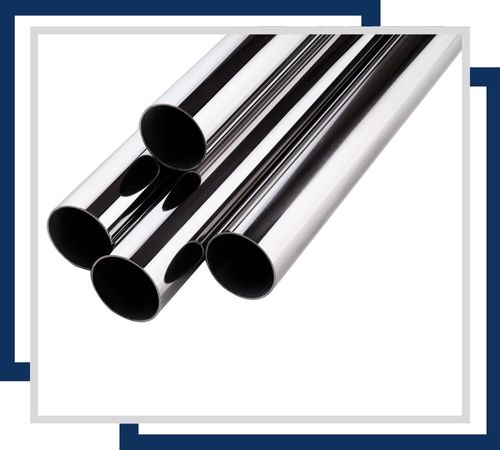

Stainless Steel 316 Welded pipes are produced by welding stainless steel sections, offering high strength and excellent corrosion resistance, suitable for marine, chemical, and industrial applications.

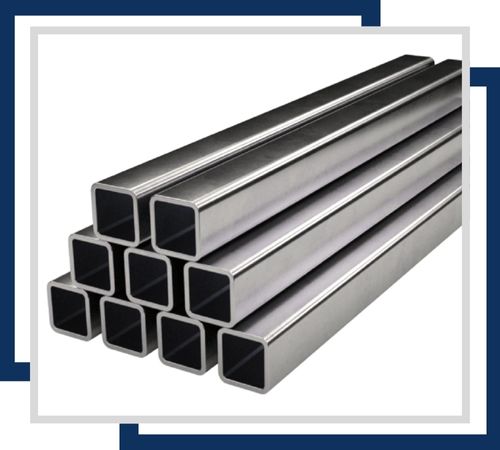

Stainless Steel 316 Square pipes feature a square cross-section, providing structural support and high corrosion resistance for architectural and industrial applications requiring durability and aesthetic appeal.
Many industries use stainless steel 316 pipes because they are strong, resistant to corrosion, and stable at high temperatures. They are used to move corrosive gases and fluids in the petrochemical and chemical industries. SS 316 pipes are utilised in saltwater applications in marine settings, including heat exchangers, pumps, and shipbuilding. These pipes’ hygienic qualities and ease of cleaning make them valuable to the food and beverage and pharmaceutical industries. They are also used in water treatment plants, architectural structures, and oil & gas pipelines. Their versatility, durability, and excellent corrosion resistance make them a preferred choice in demanding environments.
