Harshita Stainless is a leading Dubai-based manufacturer and supplier of excellent quality stainless steel products. We have specialization in providing robust and precision-engineered solutions designed to withstand the harsh conditions of industrial environments. Our extensive product portfolio includes Stainless Steel 316 Flanges, which are renowned for their superior corrosion resistance and tensile strength. Renowned for dependability and compliance with global standards, our flanges are perfect for applications in chemical processing, construction, marine, and engineering industries. Harshita Stainless offers long-term performance, satisfaction to customers, and economical stainless steel solutions for domestic and international customers expecting quality and reliability.
Stainless Steel 316 Flanges comprise iron alloyed with 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The molybdenum addition confers pitting and crevice corrosion resistance in hostile environments. The flanges have tensile strength between 515–690 MPa and yield strength of 205 MPa, in addition to good ductility and toughness. They possess a high melting temperature of approximately 1375°C and feature superior formability and weldability. These features make SS 316 flanges the perfect choice for high-temperature, chemical, and corrosive applications, thus providing sound performance and structural integrity.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 316 Flanges Harshita Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Harshita Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

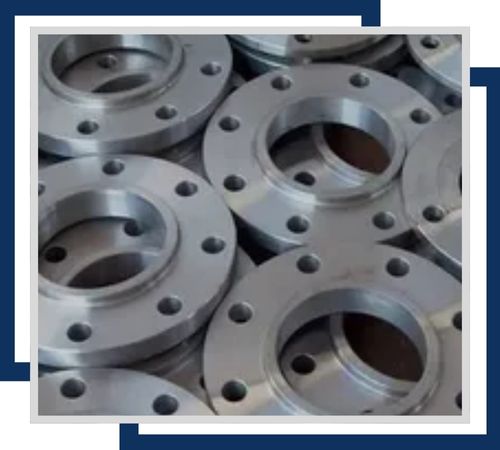

Stainless 316 Steel Threaded Flanges are designed for systems that require quick assembly and disassembly. They come in sizes ranging from 1/2″ to 24″. The 316 stainless steel construction provides excellent corrosion resistance, ideal for plumbing and water treatment applications.

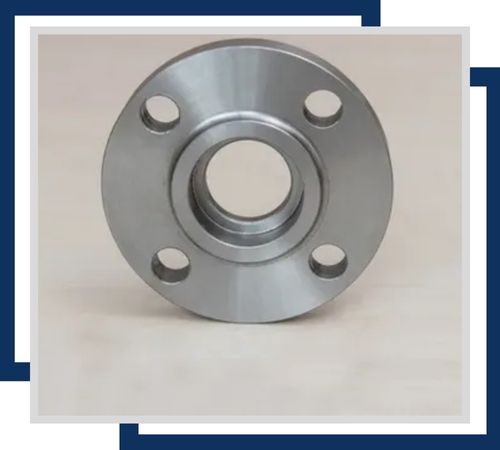

SS 316 Socket Weld Flanges are stainless steel fittings that allow pipes to be inserted into a recessed area before welding. They provide strong, leak-proof connections for small-diameter, high-pressure applications.
Stainless 316 Steel Lap Joint Flanges are used with stub end fittings and are suitable for systems requiring frequent dismantling. These flanges range in sizes from 1/2″ to 24″. The 316 stainless steel provides exceptional corrosion resistance, making them ideal for use in corrosive environments
Stainless Steel 316 Flanges are extensively utilized in business sectors that work in extremely corrosive environments, including marine, chemical, pharmaceutical, and food processing industries. Due to the presence of molybdenum, they offer excellent resistance to chlorides, acids, and saltwater, thus making them well-suited for offshore and coastal uses. These flanges are applied in water treatment systems, pressure vessels, heat exchangers, sanitary equipment, and pipeline systems. They possess high strength, temperature resistance, and leak-tight sealing, thus guaranteeing safe and efficient operation in key infrastructure. SS 316 flanges are also utilized in high-pressure systems for their durability and low maintenance needs.
