Harshita Stainless has built a solid reputation as a leading manufacturer and supplier of Stainless Steel 310H Forged Fittings, proudly serving clients in Dubai and India with top-notch, precision-engineered stainless steel components. Located in Delhi, India, the company is well-regarded for its unwavering commitment to quality, reliability, and customer satisfaction. The Stainless Steel 310H Forged Fittings are specifically crafted for high-temperature and high-pressure applications, boasting remarkable strength, heat resistance, and corrosion resistance. With state-of-the-art manufacturing facilities and rigorous quality control measures, Harshita Stainless ensures that their forged fittings meet international standards, catering to various industries including power generation, petrochemical, refinery, and heat treatment.
These fittings are made from iron combined with 24–26% chromium, 19–22% nickel, and a higher carbon content than standard 310, enhancing their high-temperature strength. They provide a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa. Additionally, they demonstrate excellent oxidation resistance and creep strength at temperatures reaching up to 1100°C, along with outstanding weldability and structural integrity under thermal stress and pressure.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

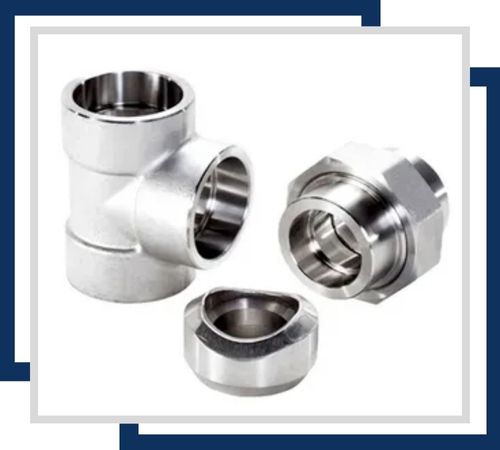

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.
Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

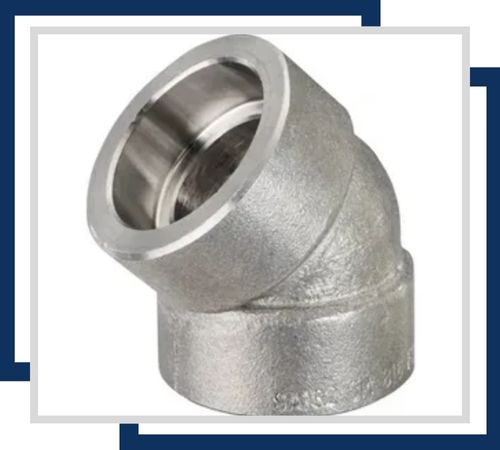

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.
Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.
Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

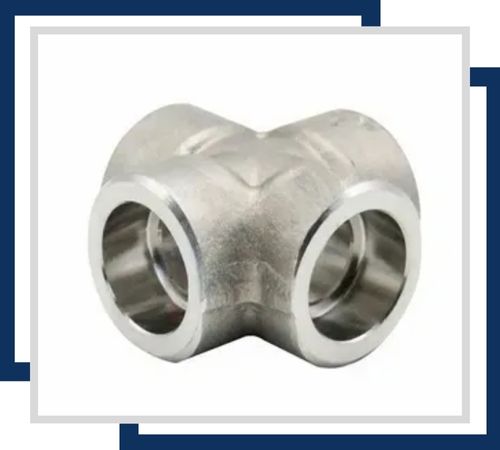

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Stainless Steel 310H Forged Fittings find extensive use in industries that operate under extreme heat and corrosive conditions. Common applications include furnace equipment, heat exchangers, petrochemical plants, boilers, incinerators, and refinery piping systems. These fittings are perfect for connecting pipes and equipment that manage high-temperature gases and fluids. Their impressive mechanical strength, resistance to scaling, and long service life make them the go-to choice for industrial operations in Dubai and India that demand reliable performance in challenging service conditions.
