Reputable for producing and supplying stainless steel 309H pipes in Delhi, India, Harshita Stainless offers top-notch piping solutions for corrosive and hot conditions. The company provides 309H pipes that are perfect for demanding industrial applications and is renowned for its precision engineering, durability, and adherence to international standards. Power generation, chemical processing, and heat treatment are among the industries that Harshita Stainless serves with a strong dedication to quality, cutting-edge manufacturing facilities, and prompt delivery. They are a reliable partner for stainless steel pipe solutions throughout India because of their technical know-how and customer-focused approach.
To improve high-temperature strength, stainless steel 309H pipes have a higher carbon content (0.04–0.10%) in addition to 22–24% chromium and 12–15% nickel. Up to 1093°C (2000°F), this austenitic stainless steel provides exceptional resistance to oxidation and scaling. Mechanical characteristics include an approximate elongation of 40%, a yield strength of 205 MPa, and a tensile strength of 550 MPa. The high carbon version of 309 is perfect for heat-intensive industrial settings because it increases mechanical stability and creep resistance at high temperatures.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
309H | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
309H | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
high-quality Stainless Steel 309H Pipes We tested to make sure durability and strength. Their pipes undergo high-quality tests; mechanical analysis is done and chemicals are checked and tested in full compliance with industries. The respective certificates of conformity are issued against every product for full compliance with reliability criteria for its quality and performance.
Stainless 309H Square Pipes are square-shaped pipes made from 309H stainless steel, offering high-temperature resistance, durability, and corrosion resistance, ideal for structural and high-heat applications.

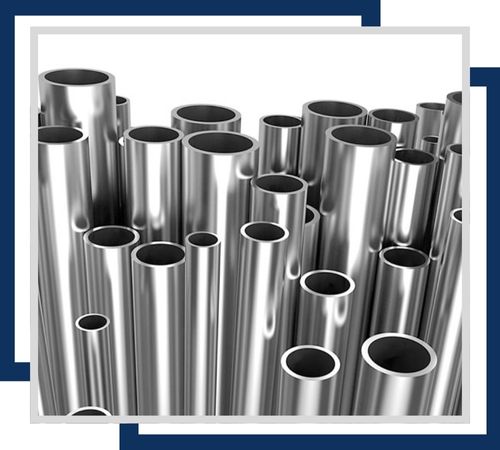

SS 309H Seamless Pipes are pipes made from 309H stainless steel without welded seams, providing superior strength, high-temperature resistance, and excellent durability for demanding industrial and high-heat applications.

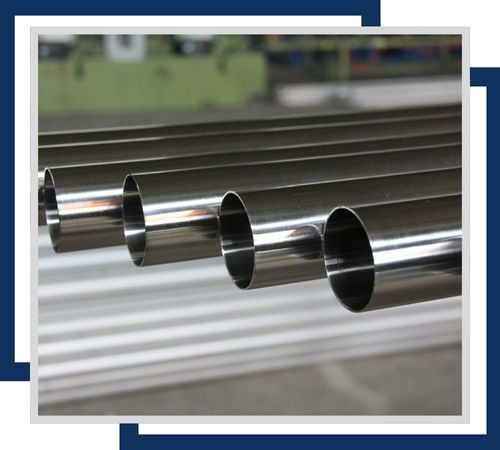

Stainless Steel 309H ERW Pipes are electric resistance welded pipes made from 309H stainless steel, known for high-temperature resistance and durability, used in various industrial and heat-intensive applications.

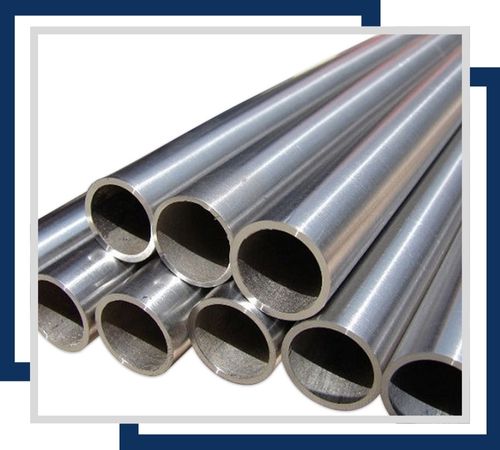

SS 309H LSAW Pipes are longitudinally submerged arc welded pipes made from 309H stainless steel, offering high heat resistance and strength, suitable for high-pressure and high-temperature industrial applications.

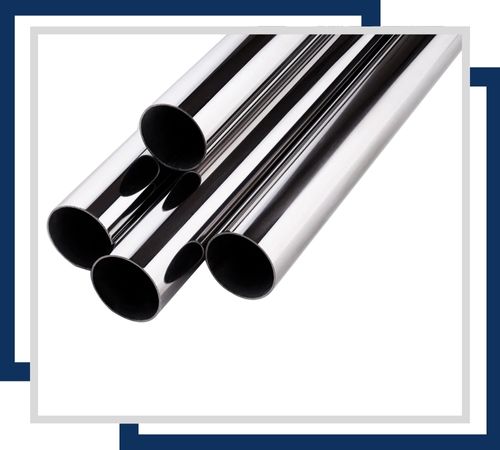

Stainless Steel 309H Round Pipes are cylindrical pipes made from 309H stainless steel, providing excellent heat resistance, durability, and corrosion resistance, ideal for high-temperature and industrial applications.

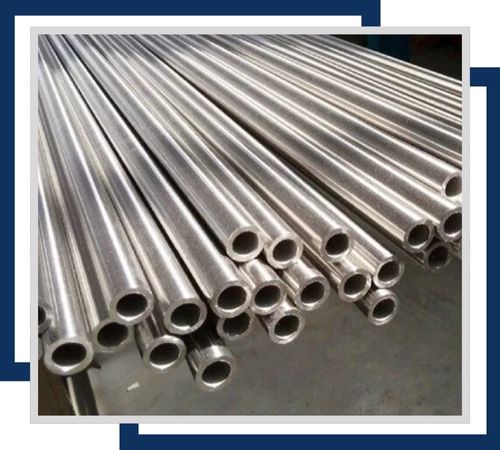

Stainless Steel 309H Welded Pipes are made from 309H stainless steel, joined by welding. They offer high-temperature resistance, durability, and strength, suitable for various industrial and high-heat applications.
In high-temperature settings where strength and resistance to oxidation are essential, stainless steel 309H pipes are widely utilised. Heat exchangers, boiler parts, furnaces, and exhaust systems in refineries and power plants are examples of common applications. They are also extensively utilised in metallurgical processes, cement plants, thermal processing facilities, and the petrochemical industry. 309H performs better in structural and pressure-bearing applications at higher temperatures because of its high carbon content. These pipes have outstanding durability, resistance to thermal fatigue, and structural integrity under harsh operating conditions, making them appropriate for use in settings with cyclic heating and cooling.
