Stainless Steel 305 Tubing is a type of austenitic stainless steel that’s been specially designed for outstanding cold working and deep drawing tasks. Thanks to its high nickel content, SS 305 boasts impressive resistance to both corrosion and oxidation, while also offering remarkable formability and non-magnetic traits when in the annealed state. This makes it a fantastic choice for crafting precision components that need extensive shaping without cracking or compromising their structural integrity. You’ll find this tubing widely used in industries where strength and ductility are key, such as electronics, food processing, and decorative applications.
When it comes to its chemical makeup, Stainless Steel 305 generally contains 17–19% chromium and 10.5–13% nickel, with a maximum carbon content of 0.12%. The higher nickel levels boost its resistance to work hardening and help maintain a non-magnetic structure, even after cold working. On the mechanical side, 305 tubing offers a tensile strength of about 520 MPa and a yield strength of around 200 MPa, along with high elongation and good toughness. It also stands up well against mild acids, oxidizing environments, and everyday atmospheric conditions, ensuring reliable performance in both daily and industrial applications.
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
| Element | Content (%) |
|---|---|
| Iron, Fe | 67 |
| Chromium, Cr | 18 |
| Nickel, Ni | 12 |
| Manganese, Mn | ≤ 2 |
| Silicon, Si | ≤ 1 |
| Carbon, C | 0.12 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield (@0.2%) | 260 MPa | 37700 psi |
| Modulus of elasticity | 193 GPa | 28000 ksi |
| Shear modulus | 86 GPa | 12500 ksi |
| Elongation at break (in 50 mm) | 50 | 50 |
| Hardness, Brinell | 80 | 80 |
| Hardness, Knoop (converted from Brinell hardness) | 97 | 97 |
| Hardness, Rockwell B (converted from Brinell hardness) | 45 | 45 |
| Hardness, Vickers (converted from Brinell hardness) | 82 | 82 |
Contact us to get a quick quote for your requirement.
We tests all Stainless Steel 305 Tubing to the international quality standard. Every batch is tested for composition, mechanical properties, and corrosion resistance. The company provides certification for material traceability that complies with ASTM, EN, and other relevant standards to ensure product excellence and reliability.
This tubing comes in a variety of sizes, typically ranging from 1/8″ to 4″ in diameter. Known for its exceptional corrosion resistance and smooth finish, it is ideal for applications requiring high durability and reliability.
Available in sizes from 1/4″ to 6″ in diameter, this tubing features a welded seam for structural strength. It offers excellent corrosion resistance and is commonly used in both industrial and architectural applications.

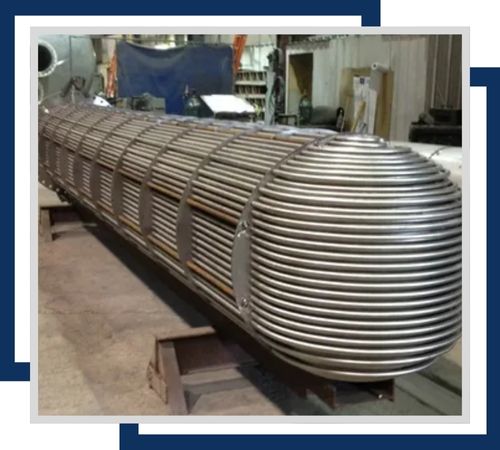

Designed for heat transfer efficiency, these tubes are generally sized from 1/2″ to 2″ in diameter. They exhibit high resistance to corrosion and are used in heat exchangers for various industrial processes.
Stainless Steel 305 Instrumentation Tubing**: Available in sizes ranging from 1/16″ to 1/2″ in diameter, this tubing is designed for precise instrumentation applications. It offers superior corrosion resistance and is ideal for use in harsh environments and critical measurement systems.

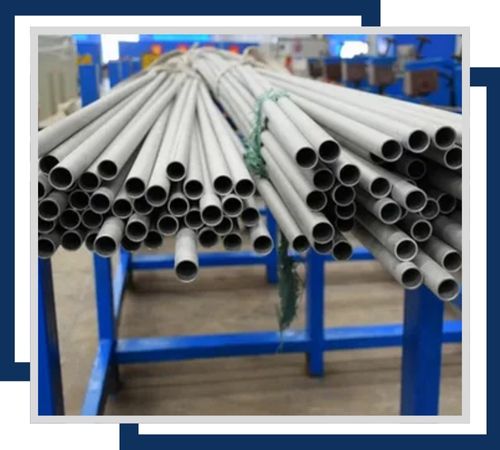

Typically available in sizes from 1″ to 4″ in diameter, these tubes are engineered to withstand high temperatures and pressures. They are highly corrosion-resistant and suitable for boiler systems.
Usually ranging from 1/2″ to 2″ in diameter, these U-shaped tubes are designed for applications such as heat exchangers and condensers. They offer strong corrosion resistance and flexibility in heat transfer systems.

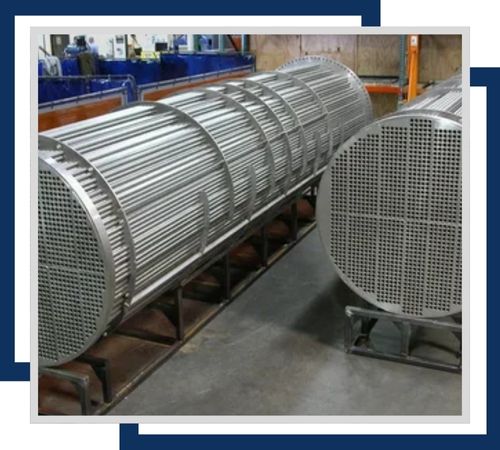

Available in sizes from 1/2″ to 3″ in diameter, these tubes are optimized for use in condensers. They provide excellent resistance to corrosion and scaling, making them ideal for high-performance cooling systems.

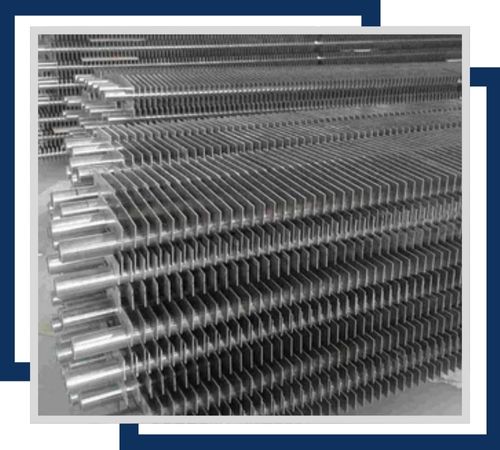

Typically sized from 1″ to 2″ in diameter, these tubes feature finned surfaces for enhanced heat transfer. They are highly resistant to corrosion and are used in various heat exchange and cooling applications.
You’ll often see Stainless Steel 305 Tubing used in the creation of deep-drawn parts like springs, flexible hoses, bellows, and electronic hardware. It’s also a popular choice for food and beverage equipment, kitchen appliances, and architectural trim, thanks to its smooth finish and resistance to corrosion. The tubing’s excellent formability and non-magnetic features make it perfect for parts that require precise shaping and tight dimensional control. Whether it’s in consumer products, automotive components, or sanitary equipment, SS 305 tubing provides durability, corrosion resistance, and flexibility in fabrication.
