Home > Stud Bolts > Stainless Steel 304L Stud Bolts

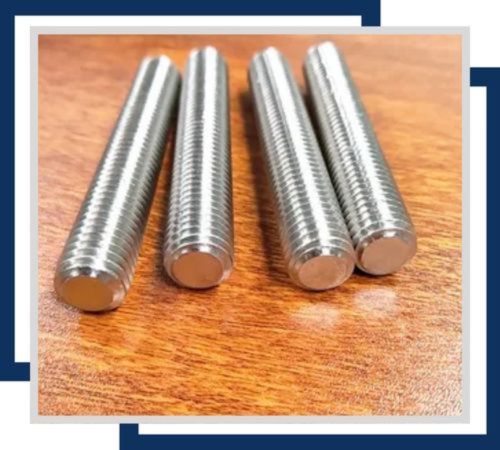

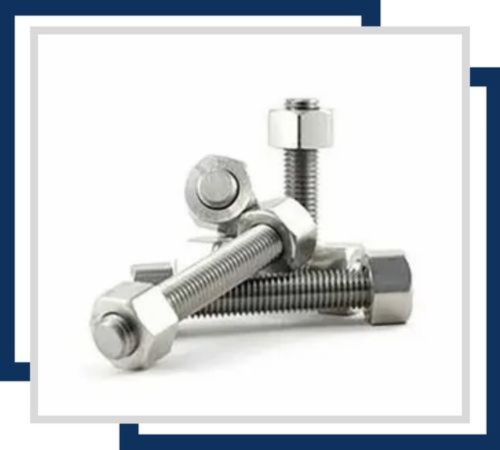

Stainless Steel 304L stud bolts are made in India and Dubai for bolting tasks which demand strength, corrosion resistance, and superior weldability. SS 304L, the low-carbon form of 304 stainless steel, provides higher resistance to sensitization and is suitable for welded assemblies. These stud bolts are made in accordance with ASTM A193 in full-thread, tap-end, and double-end configurations. Commonly applied in petrochemical, food, and marine applications, 304L stud bolts provide superior performance under mild chemical and atmospheric conditions. They are ideal for use in flange joints and equipment assemblies that are subject to moisture, acid environments, or welding heat.
SS 304L has 18–20% chromium, 8–12% nickel, and up to 0.03% carbon. These bolts provide tensile properties of 485–620 MPa and yield strength of 170–210 MPa, with 35% elongation. Low carbon content avoids welding sensitization and enhances corrosion resistance of welded joints. SS 304L retains mechanical properties from cryogenic to moderate heat environment and provides reliable performance in industrial and corrosive environments. It is readily machined and shaped and is non-magnetic in the annealed state.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

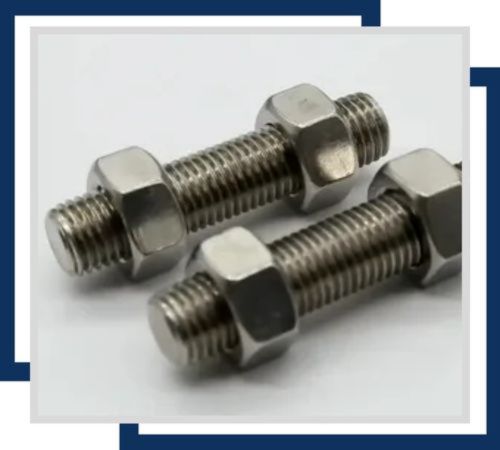

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

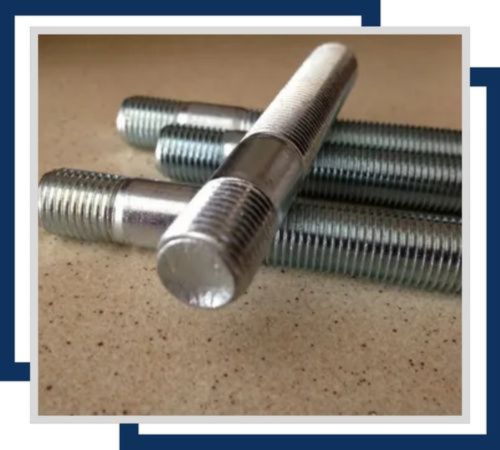

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

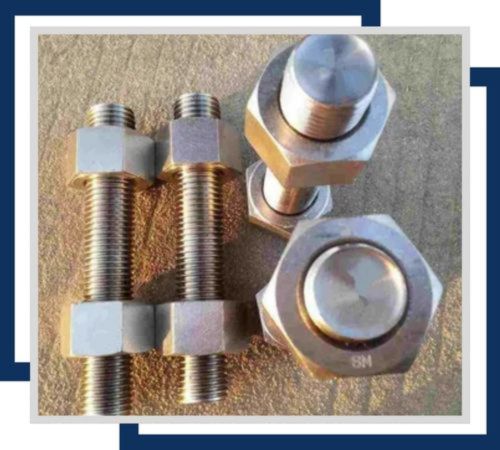

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
SS 304L stud bolts find extensive applications in chemical plants, food-grade equipment, water treatment systems, and marine equipment. They are specifically suitable for the flanged joints of piping systems, reactors, heat exchangers, and pressure vessels. Due to their corrosion resistance and weldability, they are also applicable in structural and equipment fastening. SS 304L stud bolts find application in pharmaceutical production, paper mills, and construction projects where hygiene and longevity are paramount. Their strength and effectiveness in wet or mild chemical conditions make them a stable option for mechanical and process assembly fastening.
