Home > Pipe Fittings > Stainless Steel 304L Pipe Fittings
SS 304L pipe fittings are produced in India and Dubai to offer efficient and corrosion-free fluid handling system solutions. SS 304L is the low-carbon equivalent of SS 304 with enhanced resistance to intergranular corrosion when welded. These fittings—elbows, tees, reducers, caps, and crosses—are produced to ASTM A403 specifications. They find extensive applications in water systems, chemical processes, food processing, and pharmaceutical installations. Excellent weldability, durability, and hygiene characteristics make 304L fittings suitable for sanitary liquid and gas handling in high and low-pressure applications.
SS 304L has 18–20% chromium, 8–12% nickel, and ≤0.03% carbon. It provides tensile strength of 485–620 MPa and yield strength of 170–210 MPa with 35% elongation. The low carbon content minimizes carbide precipitation when welding, giving higher resistance to intergranular attack. It has superior corrosion resistance in oxidizing environments, along with satisfactory strength and toughness over a broad range of temperatures. SS 304L pipe fittings retain their performance in mildly corrosive and atmospheric conditions and can be easily forged, machined, and welded.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| SS | 304L | 304N | 304LN |
|---|---|---|---|
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 304L pipe fittings undergo rigorous testing, including mechanical, chemical and dimensional inspections to ensure quality and efficiency. We provide relevant certifications such as Mill Test Certificates (MTC), EN 10204-3.1, and third party inspection reports, to ensure compliance with industry standards and customer requirements.
Stainless Steel 304L pipe fittings are durable components known for their excellent corrosion resistance and weldability. They are used in various industries for reliable, high-performance piping systems under diverse conditions.

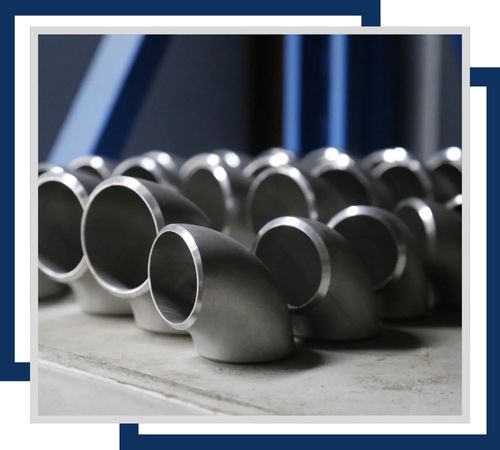

SS Butt Weld 304L pipe fittings are stainless steel components designed to connect pipes by welding their ends together. They offer strong, durable joints with excellent corrosion resistance and high-temperature performance.

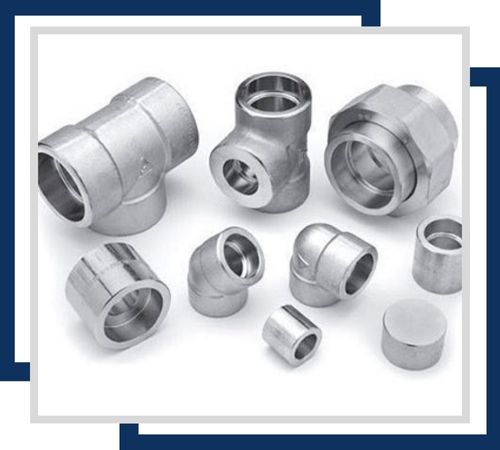

SS Socket 304L weld pipe fittings are stainless steel components that connect pipes by fitting them into a socket and welding around the joint. They provide strong, leak-proof connections with excellent corrosion resistance.

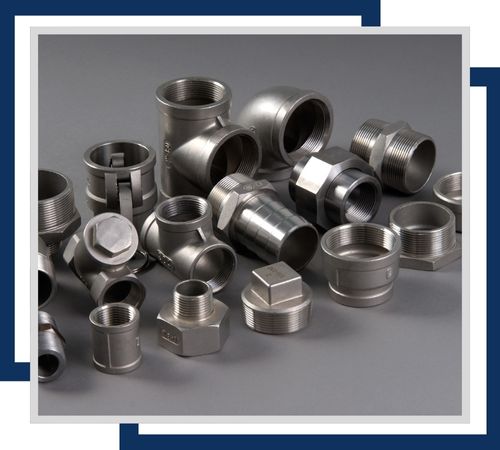

Stainless Steel 304L seamless fittings are high-strength, corrosion-resistant components manufactured without welds. They ensure uniformity and reliability, ideal for high-pressure and high-temperature applications in various industrial systems.

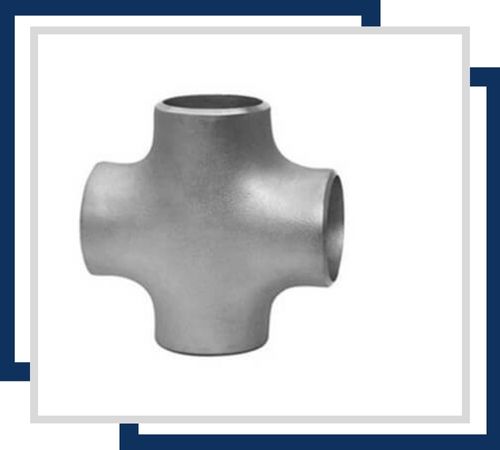

SS Cross 304L pipe fitting is a stainless steel component designed to connect four pipes at a cross-shaped junction. It provides durable, leak-proof connections and excellent corrosion resistance for branching in piping systems.
Stainless Steel 304L tee fittings are components that join three pipes at a T-shaped junction. They offer excellent corrosion resistance and durability, making them ideal for branching and distributing flow in various piping systems.
SS 304L pipe fittings are applied in clean, leak-free fluid transfer systems requiring by industries like dairy, beverage, pharma, chemical, and food processing facilities. They prove to be suitable for sanitary piping, potable water distribution, and process systems due to their corrosion-resistance and cleaning ease. They also find application in HVAC systems, irrigation pipes, and compressed air networks. SS 304L is selected due to its strength and hygienic properties and its ability to provide long service life. Its weldability and formability make it ideal for fabricators and contractors to rely on low-maintenance stainless steel pieces.
