Stainless Steel 304/304L sheet and plates are produced in Dubai and India for multipurpose usage in construction, industrial fabrication, and sanitary applications. SS 304 is the common “18/8“ stainless grade that is particularly resistant to corrosion and strong, and 304L provides a lower carbon option for better weldability. These plates and sheets are produced in accordance with ASTM A240 specifications and may be found with numerous finishes such as 2B, No.4, and mirror polish. They are appropriate for tanks, vessels, equipment for kitchens, machinery parts, and architectural panels, providing a combination of workability, durability, and aesthetic appeal.
SS 304/304L contains 18–20% chromium, 8–12% nickel, and has ≤0.08% carbon in 304 and ≤0.03% carbon in 304L. They possess tensile strength of 485–620 MPa, yield strength of approximately 170–210 MPa, and elongation of 35%. SS 304L minimizes the potential for intergranular corrosion following welding, whereas both grades have good resistance to oxidizing conditions. These sheets and plates have perfect formability and surface integrity and are capable of withstanding extensive temperatures and chemical exposures.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

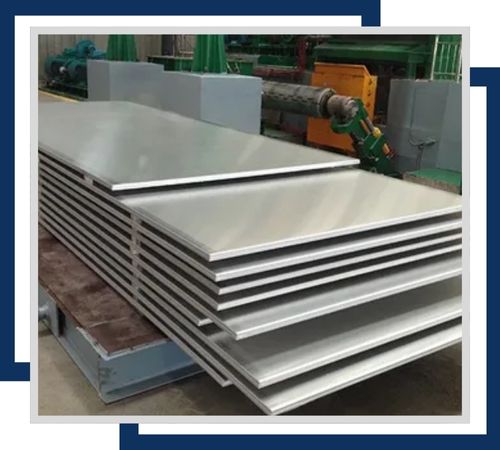

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

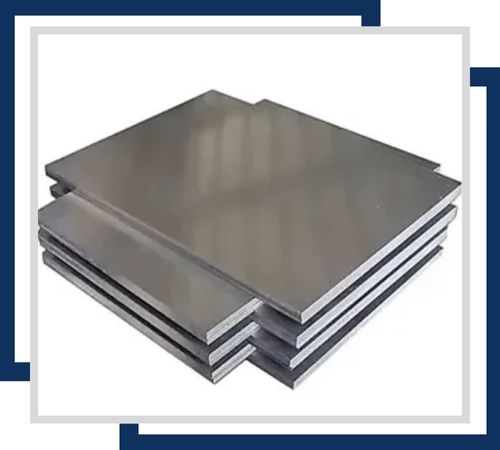

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

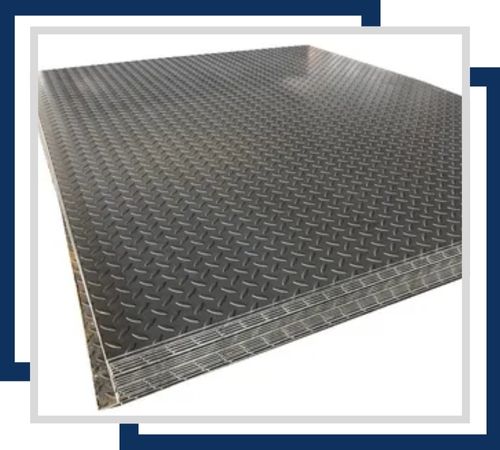

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

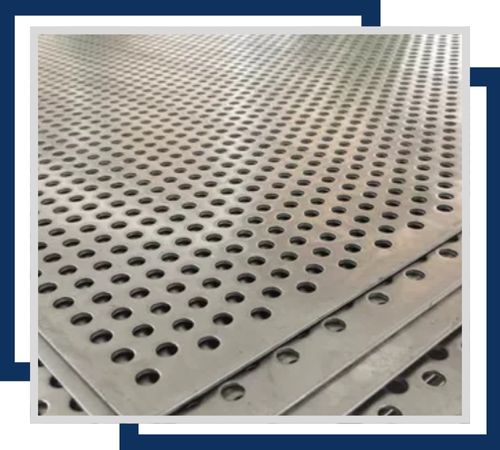

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

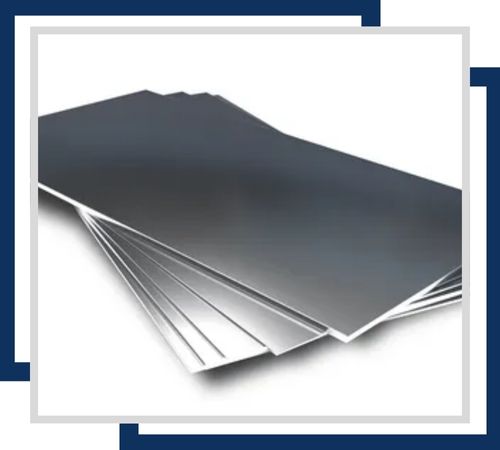

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.
304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Harshita Stainless aims at making the purchase process hassle-free for its clients by offering detailed documentation of excellent quality Stainless Steel 304/304L Sheets and Plates. These include critical commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports, which give the authenticity and premium quality to our products. We also offer Stainless Steel 304/304L Sheets and Plates with Test Certificate like EN 10204 3.1b, PMI Test Certificate, radiography test reports of 100%, and third-party inspection. It shows us focused on satisfaction to our valued customers and also hard work.
SS 304/304L plates and sheets are extensively applied in medicine device manufacturing, chemical transportation, food processing, and architecture. They are specifically used to produce tanks, countertops, enclosures, kitchen appliances, and elevator panels. In industrial settings, they are utilized for reactor linings, paneling, ducting, and pressure vessel covers. Due to their corrosion resistance and smooth finish, they are also applicable in pharmaceutical as well as sanitary applications. SS 304L‘s weldability is especially useful for pressure-rated or sanitary welded structures. Their combination of hardness, cleanliness, and rust-resistance makes them one of the best options for usage inside and outside.
