Harshita Stainless is a well-respected manufacturer and supplier located in Delhi, India, known for its top-notch stainless steel products. With a solid foothold in the international market, the company proudly stands out as a leading Stainless Steel 202 Flanges Manufacturer in Dubai, UAE. They’ve built a reputation for precision engineering, timely deliveries, and solutions that put customers first, serving a diverse array of industries. Their unwavering commitment to quality and innovation guarantees that their products are not only durable but also reliable, meeting international standards. These flanges find extensive use in sectors like oil & gas, petrochemicals, and construction, both in the UAE and beyond.
Stainless Steel 202 Flanges are primarily made up of chromium (17–19%), nickel (4–6%), manganese (7.5–10%), along with trace amounts of carbon and nitrogen. These flanges boast impressive mechanical properties, featuring a tensile strength of around 515 MPa, a yield strength of 275 MPa, and commendable elongation and hardness traits. The material is known for its high toughness, particularly in low-temperature settings, and offers solid resistance to corrosion and oxidation. Stainless Steel 202 serves as a budget-friendly alternative to other austenitic grades while still delivering high performance in challenging industrial conditions.
| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | PN 2.5 to PN 100 |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Contact us to get a quick quote for your requirement.
Testing and certification of all Harshita Stainless Flanges of Stainless Steel 202 will be done at all levels so that the material will be completely tested for performance and quality. The flange is tested as per international standards for mechanical, chemical, and dimensional inspections. With every order, CoC and MTR are provided with traceability against industry requirements. In response to specific requirements of a project, PMI, hardness tests, and other kinds of testing may be requested on an additional testing basis.

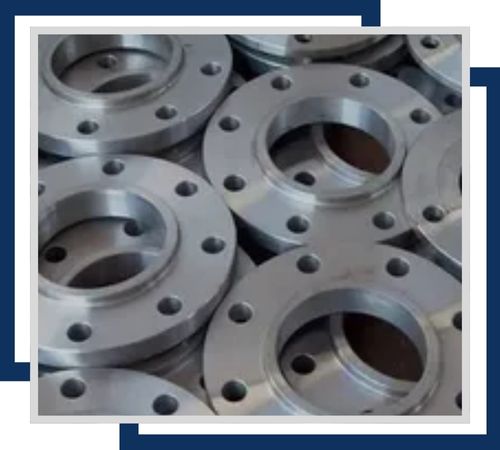

Stainless Steel 202 Threaded Flanges provide a secure, leak-proof connection with easy installation and removal. Ideal for applications requiring high corrosion resistance, they offer durability and strength in various industrial settings.

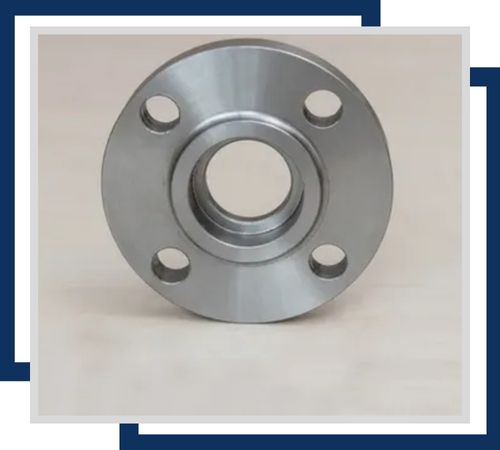

SS Socket 202 Weld Flanges feature a recessed socket for easy welding, providing a strong, corrosion-resistant connection. Ideal for high-pressure applications, they offer durability and reliable performance in challenging environments.

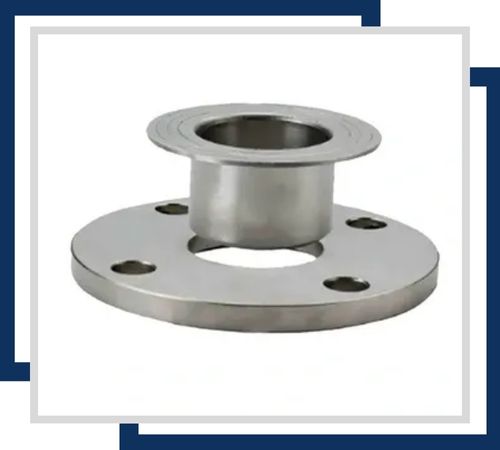

Stainless Steel 202 Lap Joint Flanges offer flexibility with easy alignment and disassembly. Their corrosion-resistant properties make them ideal for systems requiring frequent maintenance, ensuring durable and reliable connections.
These flanges are widely utilized in industries that need strong and cost-effective connection components for piping systems. This includes petrochemical plants, the oil and gas sector, food processing facilities, chemical processing, water treatment plants, and power generation. Their remarkable strength, resistance to corrosion, and ease of fabrication make them perfect for both indoor and outdoor uses. In Dubai, UAE, these flanges are heavily employed in construction projects, marine settings, and industrial infrastructure where reliability and durability are essential. Their versatility and performance have made them a favored choice across various engineering and mechanical fields.
