Based in Delhi, India, Harshita Stainless is a top producer and supplier of stainless steel 201 tubing, providing high-end goods renowned for their dependability, accuracy, and affordability. The company guarantees that every tube satisfies international industrial standards thanks to its state-of-the-art production facilities and strict quality control procedures. Harshita Stainless’s stainless steel 201 tubing is made to perform well in applications that call for strength and a moderate level of corrosion resistance. The business provides dependable solutions with timely service and specialised specifications to satisfy customer needs in a variety of industries, such as construction, automotive, and food processing.
The main constituents of stainless steel 201 tubing are manganese (5.5–7.5%), nickel (3.5–5.5%), and chromium (16–18%), with trace amounts of silicon, carbon, and nitrogen. It offers good hardness and wear resistance and is well-known for having high tensile strength (up to 860 MPa) and yield strength (minimum 275 MPa). SS 201 is ideal for less demanding environments even though it has less corrosion resistance than 304. Its excellent formability, weldability, and affordability make Stainless Steel 201 Tubing a popular choice for structural and decorative applications in both commercial and industrial sectors.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
| Tolerance | Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
| Finishing | A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
Contact us to get a quick quote for your requirement.
We provides stainless steel 201 tubing with proper quality assurance by way of strict testing and certification. Every product undergoes thorough inspections in tensile, hardness, and corrosion resistance tests that are all international standards like ASTM and ISO. Being certified for reliability and performance, these tubes ensure durability, safety, and compliance for different industrial and commercial applications.

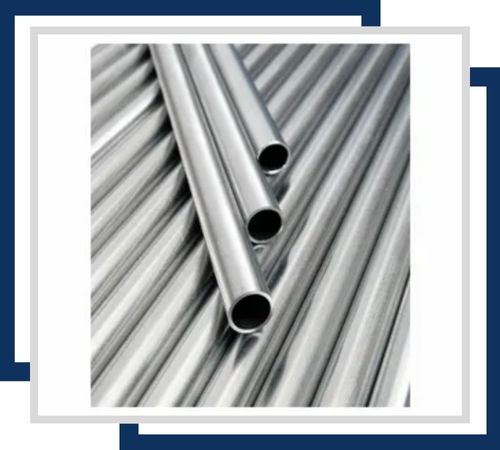

Stainless Steel 201 Seamless Tubing is available in sizes ranging from 1/8″ to 14″ OD. It is known for its excellent corrosion resistance and high mechanical strength. Ideal for high-pressure applications, it ensures a smooth, uninterrupted flow.

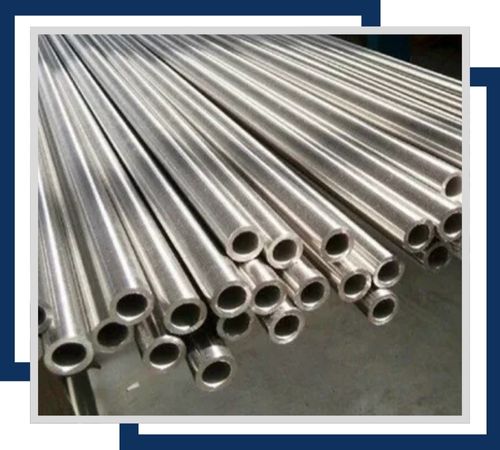

Stainless Steel 201 Welded Tubing comes in sizes from 1/8″ to 24″ OD. It offers good corrosion resistance and weldability. Suitable for structural applications and fluid transportation, it is cost-effective compared to seamless tubing.

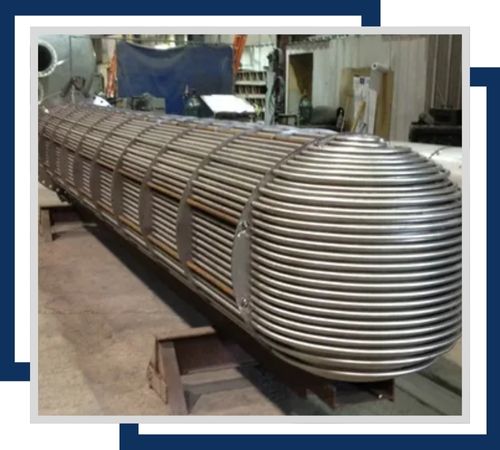

Stainless Steel 201 Heat Exchanger Tubes are available in sizes from 1/8″ to 2″ OD. These tubes exhibit superior corrosion resistance and thermal conductivity. They are essential in applications requiring efficient heat transfer.

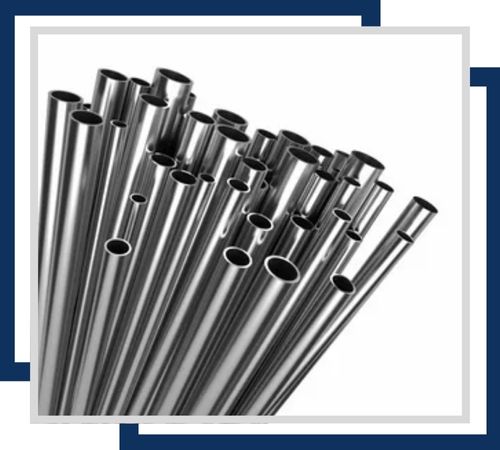

Stainless Steel 201 Instrumentation Tubing is available in sizes from 1/8″ to 1″ OD. It provides excellent corrosion resistance and precise dimensions. Used in control and measurement devices, it ensures accurate performance.

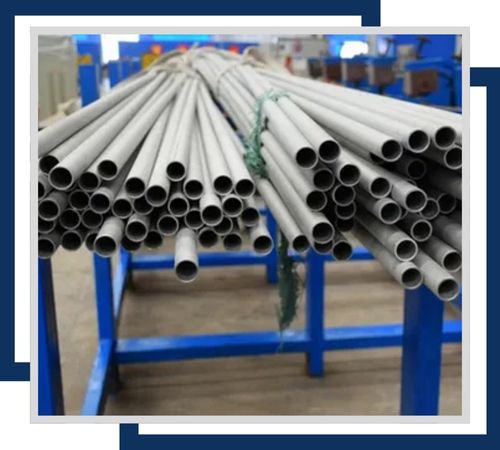

Stainless Steel 201 Boiler Tubes come in sizes from 1/2″ to 5″ OD. They offer high corrosion resistance and strength under high temperatures and pressures. These tubes are crucial for efficient boiler operations in various industries

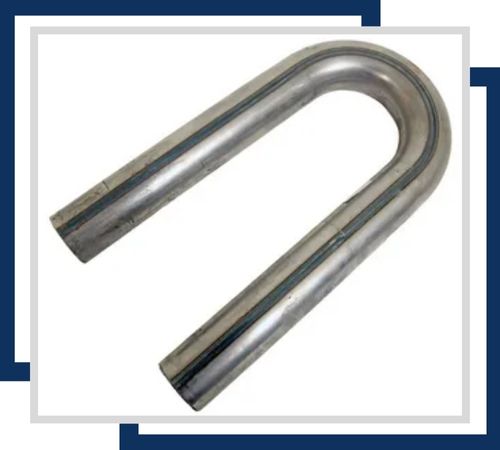

Stainless Steel 201 U-Tubes are available in sizes from 1/4″ to 2″ OD. They exhibit excellent corrosion resistance and are formed in a U-shape for heat exchanger applications. Ideal for compact design requirements in heat transfer systems.

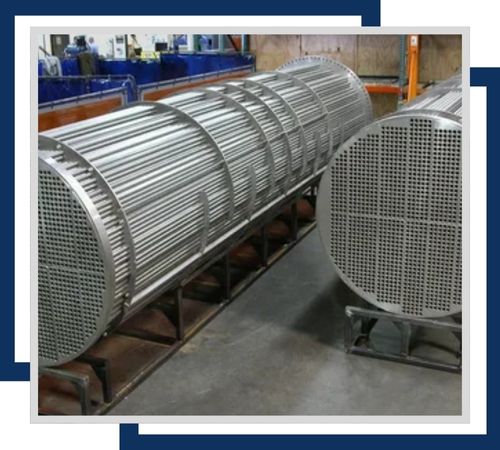

Stainless Steel 201 Condenser Tubes are available in sizes from 1/4″ to 1″ OD. These tubes provide superior corrosion resistance and thermal efficiency. Used in condensers to effectively transfer heat and condense vapors.

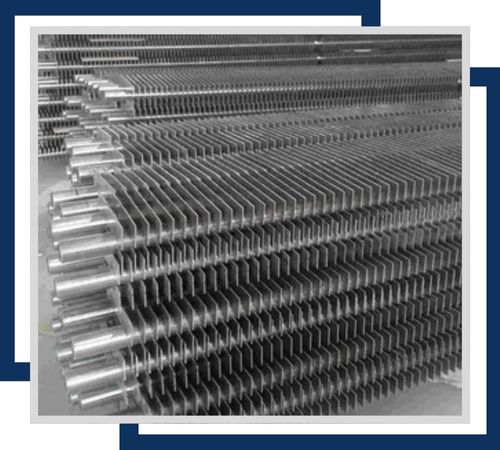

Stainless Steel 201 Fin Tubes come in sizes from 1/2″ to 3″ OD with varying fin heights. They offer excellent corrosion resistance and enhanced heat transfer surface area. Ideal for applications needing improved thermal efficiency
In structural, architectural, and industrial applications where durability, beauty, and affordability are crucial, stainless steel 201 tubing is frequently utilised. It is frequently utilised for railings, frames, and ornamental elements in construction. Because of its excellent strength-to-weight ratio, the tubing is also used in automotive components like trim and exhaust systems. It is utilised in equipment in the food and beverage sector that needs to be easily cleaned and have a moderate level of corrosion resistance. Additional uses include tubing systems in mildly chemical environments, furniture, and kitchen appliances. SS 201 tubing is perfect for a variety of industries due to its affordability and adaptability.
