AWS Class ER385 MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER385 Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER385 MIG & TIG Filler Wire Manufacturer in Dubai, SFA A5.9 ER385 MIG & TIG Filler Rod Supplier in India, Alloy ER385 Welding Mig & Tig Filler Wire Exporter in Delhi, UNS S30888 Mig and Tig Stick Filler Metal Trader in Delhi, AWS ER385 Mig & Tig Filler Metal Rod & Wire India, AWS Class ER385 Metal Inert Gas (MIG) Welding Delhi

Harshita Stainless presents AWS Class ER385 MIG and TIG filler welding wire and rod, designed for specialized carbon and low-alloy steel applications that require high toughness. Manufactured in Delhi under strict quality standards, ER385 wires are optimized for reliability and optimal arc performance. Harshita Stainless ensures uniform feeding, low spatter, and clean bead profiles. Each batch goes through detailed chemical and mechanical testing to certify its compliance with AWS specifications. This wire is a great choice for industries with specific welding requirements, such as structural fabrication, pipelines, and pressure vessel manufacturing, seeking a balance of strength, toughness, and weld quality.

AWS A5.9 ER385 MIG & TIG Welding Filler Rod Manufacturer in Dubai, AWS Class ER385 MIG & TIG Filler Metal Stockist in India, MIG & TIG Filler Rods Delhi, MIG & TIG Filler Metal Stockist India, AWS Class ER385 Tungsten Inert Gas (TIG) Welding India

AWS Class ER385 filler wire typically contains ≤0.10% carbon, 1.0% manganese, 0.35% silicon, plus small amounts of nickel and molybdenum. It achieves tensile strength of ≥485 MPa and yield strength of ≥370 MPa, with elongation often reaching ≥25%, ensuring excellent ductility and toughness. Impact toughness is ≥20 J at –29 °C. Its controlled chemistry supports a stable welding arc, uniform deposition, and minimal spatter. ER385 has enhanced mechanical attributes over lower-strength fillers, making it effective for demanding high-strength welding scenarios and suitable for gas-shielded MIG or inert-gas TIG welding processes.

AWS Class ER385 MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER385
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER385 MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER385 MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Mn	Si	Cr	Ni	Mo	S	P	Cu
Standard	≤0.025	1.00-2.50	≤0.50	19.5-21.5	24.0-26.0	4.20-5.20	≤0.030	≤0.020	1.20-2.00
Test	0.013	1.93	0.21	20.5	25.10	4.67	0.003	0.012	1.69

AWS Class ER385 MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Tensile Strength (psi)	86,000 psi (593 MPa)
Yield Strength (psi)	57,000 psi (393 MPa)
Elongation (%)	42%

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER385 MIG and TIG Filler Welding Wire and Rod from Harshita Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER385 MIG and TIG Filler Welding Wire and Rod

Stainless Steel ER385 MIG Filler Wire

Stainless Steel ER385 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance for welding high-alloy stainless steels. Ideal for critical industrial applications.

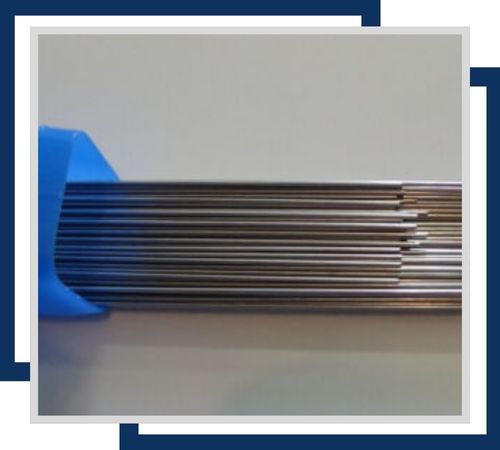

Stainless Steel ER385 TIG Filler Wire

Stainless Steel ER385 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance. Perfect for precision welding of high-alloy stainless steels in demanding environments.

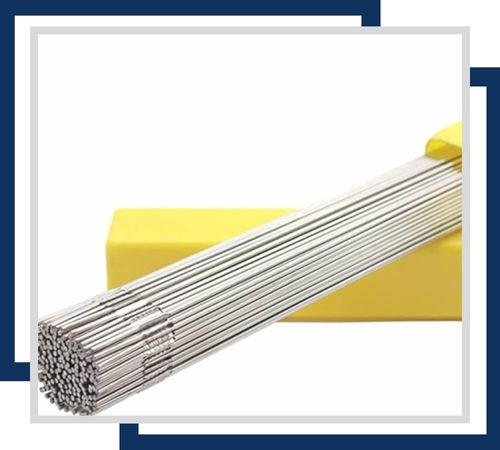

Stainless Steel ER385 TIG Filler Rod

Stainless Steel ER385 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance. Suitable for welding high-alloy stainless steels in various industrial applications.

We assure the highest quality for our AWS Class ER385 MIG and TIG Filler Welding Wire and Rod through comprehensive in-house testing and inspections. These products are engineered to provide excellent welding performance with enhanced resistance to corrosion and oxidation at high temperatures. We prioritize timely deliveries, ensuring that our clients receive their orders without delay, maintaining efficiency and reliability in every project.

Stainless Steel Industrial ER385 MIG / TIG Filler Wire Price List in Delhi, Aws Class ER385 MIG /TIG Filler Welding Wire India, Stainless Steel ER385 Mig & Tig Filler Wire Supplier in Dubai, India, SS ER385 MIG & TIG Filler Metal Distributor in Delhi, AWS Class ER385 MIG & TIG Filler Metal Exporters India, UNS S30888 AWS Class ER385 MIG and TIG Filler Welding Wire and Rod Delhi

AWS Class ER385 MIG and TIG Filler Welding Wires and Rods Uses

AWS Class ER385 filler wire is widely used in critical applications such as high-pressure pipeline welding, structural steel fabrication, shipbuilding, and pressure vessel assembly. Its high yield and tensile strengths, along with excellent low-temperature toughness, ensure strong and durable weld joints under tough conditions. This filler also suits petrochemical equipment, mining machinery, and heavy engineering structures where mechanical performance and fracture resistance are crucial. Compatible with both MIG and TIG techniques, ER385 reduces the need for post-weld heat treatment and ensures consistent quality in demanding outdoor and industrial fabrication environments.
