Home > Electrodes > AWS Class ER347 Mig & Tig Filler Welding Wire & Rod
Harshita Stainless is a top manufacturer and supplier of AWS Class ER347 MIG and TIG Filler Welding Wire and Rod, available throughout Dubai and India. ER347 is a type of austenitic stainless steel filler metal that is stabilized with columbium (niobium). It is designed for high-temperature applications and offers resistance to intergranular corrosion. This filler metal is especially good for welding Type 321 and 347 stainless steel, where stabilization against carbide precipitation is required. Harshita’s filler wires and rods are built to provide smooth feeding, clean starts for the arc, and consistent weld deposits in both MIG and TIG welding processes across sectors such as aerospace, power generation, and refineries.
The ER347 filler wire usually has 19–21% chromium, 9–11% nickel, and columbium (niobium) for stabilization. It provides tensile strength of ≥75 ksi, yield strength of ≥55 ksi, and elongation of ≥30%. Adding columbium helps prevent intergranular corrosion during prolonged exposure to high temperatures. ER347 keeps its mechanical properties and structure well during cycles of heating and cooling and in oxidation. It is non-magnetic and creates strong, ductile welds. In TIG and MIG formats, it shows great bead appearance, minimal porosity, and smooth transitions during the arc.
| Classification | AWS A5.9, ER347 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER347 MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu | Element | Amount |
| 0.08 | 19.0-21.5 | 9.0-11.0 | 0.75 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 | Nb | 10XC min/1.0 max |
| Yield, kpsi: | 57 |
| Tensile Strength, kpsi: | 86 |
| Elongation%, min: | 35 |
Contact us to get a quick quote for your requirement.

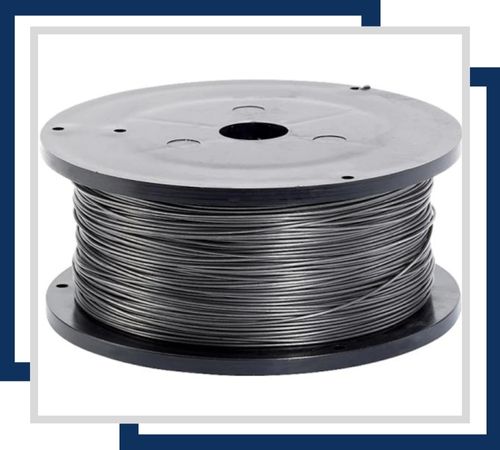

Stainless Steel ER347 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance and stability. Ideal for welding stabilized stainless steel in various industrial applications.

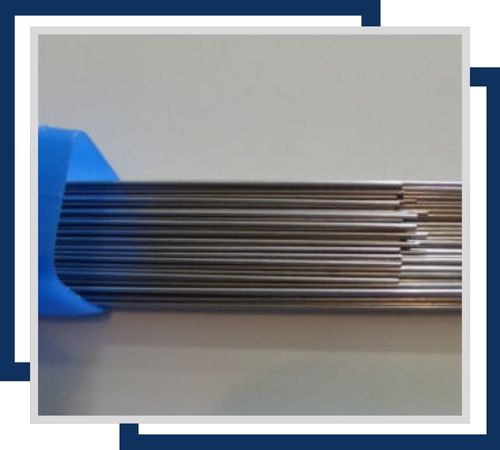

Stainless Steel ER347 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance and stabilization. Perfect for precise welding of stabilized stainless steel in critical environments.

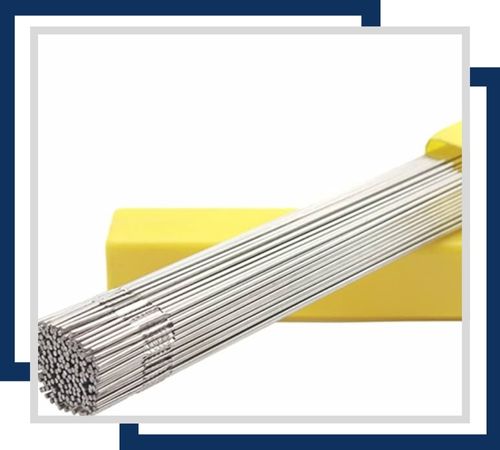

Stainless Steel ER347 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance and stability. Suitable for welding stabilized stainless steel in demanding industrial applications.
We conduct rigorous tests on our AWS Class ER347 MIG and TIG Filler Welding Wire and Rod. To make sure they meet the highest quality standards. Our products undergo thorough various inspections to guarantee their reliability and performance in demanding applications. We also offer prompt delivery to assure our clients receive their orders on time. Maintaining smooth and efficient operations. Our commitment to quality and timely service makes us a trusted partner for all welding requirements.
ER347 TIG and MIG filler wires and rods are commonly used for welding stabilized stainless steels, like 321 and 347, in industries such as aerospace, marine, nuclear, and thermal power. They are perfect for making high-temperature components that include parts for furnaces, pressure vessels, heat exchangers, and piping for chemical processing plants. ER347 performs well under oxidative conditions and is resistant to stress corrosion cracking. It is also used in steam piping systems and in equipment that faces high heat and corrosion. This ensures long-lasting stability and strength for welds.
