Home > Electrodes > AWS Class ER317L Mig & Tig Filler Welding Wire & Rod
Harshita Stainless provides high-quality AWS Class ER317L MIG and TIG Filler Welding Wire and Rod, designed for superior corrosion protection and durability in harsh environments. Produced in both Dubai and India, ER317L is a low-carbon austenitic stainless steel filler metal that contains molybdenum. It is commonly used in pulp and paper, chemical, and marine industries where strong resistance to pitting and crevice corrosion is essential.
ER317L is made up of 18–20% chromium, 13–15% nickel, 3–4% molybdenum, and ≤0.03% carbon. The higher molybdenum content provides better resistance to pitting and crevice corrosion in environments with high chloride levels. It has a tensile strength of ≥75 ksi, yield strength of ≥55 ksi, and elongation of ≥30%. ER317L maintains the strength and toughness of welds even in aggressive conditions and during thermal cycling. This filler wire offers smooth control of the arc and excellent wetting during both MIG and TIG processes. Its low carbon content minimizes the risk of intergranular corrosion after welding, even in critical service conditions.
| Classification | AWS A5.9, ER317L |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER317L MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 18.5-20.5 | 13.0-15.0 | 3.0-4.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Tensile Strength, kpsi: | 83* |
| Yield Strength, kpsi: | 60* |
| Elongation %: | 42* |
Contact us to get a quick quote for your requirement.

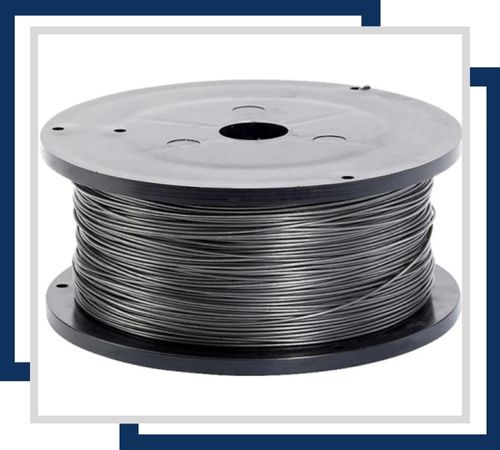

This MIG filler wire is available in sizes such as 0.030″, 0.035″, and 0.045″ diameter. It offers excellent corrosion resistance and is ideal for welding stainless steels with high molybdenum content. Its low carbon content helps minimize carbide precipitation.

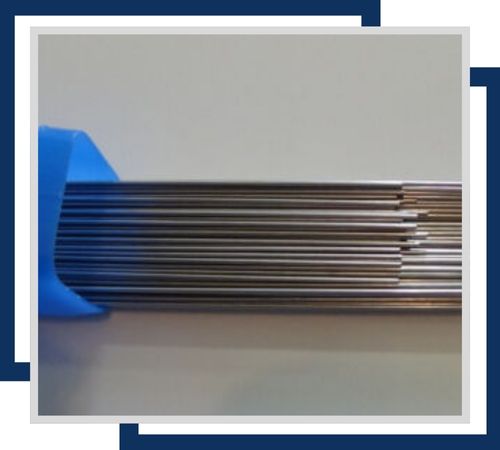

Available in diameters like 1/16″, 3/32″, and 1/8″, this TIG filler wire provides superior corrosion resistance. It is suitable for welding similar stainless steel alloys and maintains a low carbon content to prevent carbide formation.
Typically offered in sizes of 1/16″, 3/32″, and 1/8″ diameter, this filler rod is known for its excellent resistance to corrosion and high strength. It’s designed for use in TIG welding applications requiring enhanced resistance to pitting and crevice corrosion.
After manufacturing, our quality control team conducts both destructive and non-destructive tests using advanced tools to ensure the performance and reliability of the AWS Class ER317L MIG and TIG Filler Welding Wire and Rod. Once tested we pack the products securely to maintain their quality during transit and ensure timely delivery to customers. All relevant documents are provided to clients at the time of delivery for full transparency and assurance.
ER317L filler welding wire and rod are widely used in industries that handle harsh chemicals, such as pulp and paper, petrochemical, and chemical processing. They are perfect for tanks, heat exchangers, reactors, and process piping that are exposed to sulfuric, acetic, and phosphoric acids. The filler metal is suitable for welding Type 317L stainless steels and similar alloys that require outstanding resistance to localized corrosion.
