Home > Electrodes > 309LMo MIG & TIG Filler Welding Wire & Rod
Harshita Stainless, a reputable manufacturer and supplier based in Delhi, India, specializes in top-notch 309LMo MIG and TIG Filler Welding Wire and Rod, perfect for high-performance stainless steel welding. These filler materials are crafted specifically for welding dissimilar steels and overlay applications that demand exceptional corrosion resistance in tough environments. With a carefully controlled chemistry that includes molybdenum, they offer improved resistance to pitting and crevice corrosion. Harshita Stainless guarantees consistent mechanical and metallurgical properties in every batch, ensuring clean, stable arc performance and outstanding weld quality. These wires and rods are perfect for critical applications in the chemical, offshore, and marine sectors.
309LMo MIG and TIG Filler Wire and Rod are low-carbon austenitic stainless fillers that contain about 23% Chromium, 13% Nickel, and 2.5–3% Molybdenum. The low carbon content (<0.03%) boosts resistance to intergranular corrosion, while molybdenum enhances resistance to pitting and crevice corrosion. Typical mechanical properties include a tensile strength of 600–650 MPa, a yield strength of around 400 MPa, and an elongation of 30%. These fillers showcase smooth arc characteristics, minimal spatter (MIG), and excellent weld pool control (TIG), providing high strength and remarkable corrosion resistance in both single- and multi-pass applications.
| Classification | AWS A5.9, 309LMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS 309LMo MIG & TIG Filler Metal Application & uses |
|
| C | Mn | Si | Cr | Ni | S | P | Mo | Cu |
| 0.03 max | 1.0-2.5 | 0.30-0.65 | 23-25 | 12-14 | 0.03 max | 0.03 max | 2-3 | 0.75 max |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

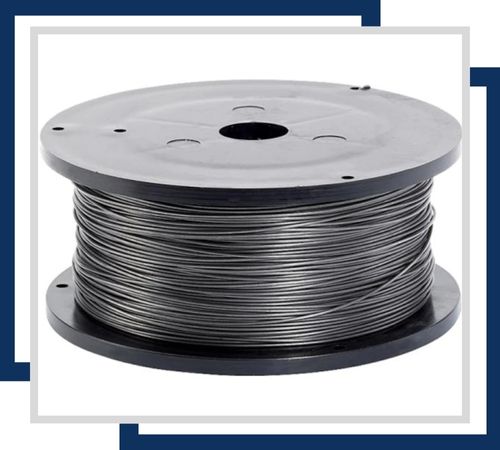

Alloy 309LMo MIG filler wire provides excellent corrosion resistance and high-temperature strength, suitable for welding in harsh environments like chemical processing and power generation.

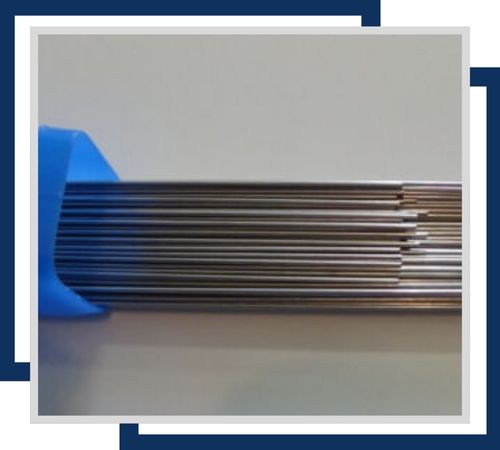

Alloy 309LMo TIG filler wire offers superior resistance to pitting and crevice corrosion, ideal for high-temperature applications and joining dissimilar metals in challenging environments.

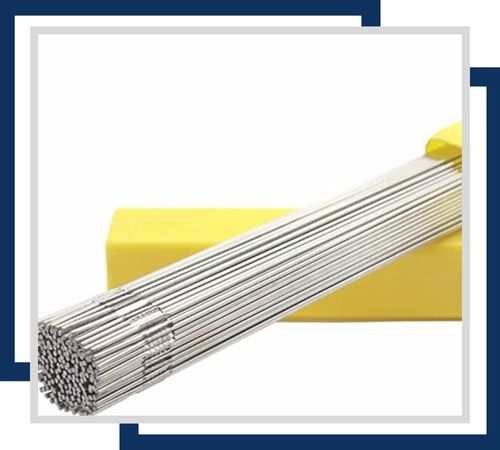

Alloy 309LMo TIG filler rod delivers robust corrosion resistance and strength, perfect for precision welding in harsh conditions, including chemical processing, petrochemical, and power generation industries.
We conduct extensive in-house testing to ensure that the highest quality standards are achieved by 309L Mo MIG and TIG Filler Welding Wires and Rods. Our customers know that we offer comprehensive third-party inspection services for these products to provide them with the assurance that these products are reliable and performing. We equally hold equal attention with regard to the timely supply of products for which you can place your orders in advance thus enabling you to also plan efficiently the other components of your project.
Alloy 309LMo MIG and TIG Filler Welding Wire and Rod are extensively used in demanding programs requiring superior corrosion resistance and energy at improved temperatures. The addition of molybdenum enhances resistance to pitting and crevice corrosion, making it best for harsh environments. Common makes use of encompass chemical processing system, petrochemical plant life, electricity generation, and heat exchangers. It is also used for joining distinct metals and overlay welding. The alloy’s strong properties ensure long lasting, exquisite welds, making it suitable for each industrial fabrication and protection programs in corrosive and high-temperature settings.
